U.S. MOTORSC-Face 3-Phase General Purpose AC Motors

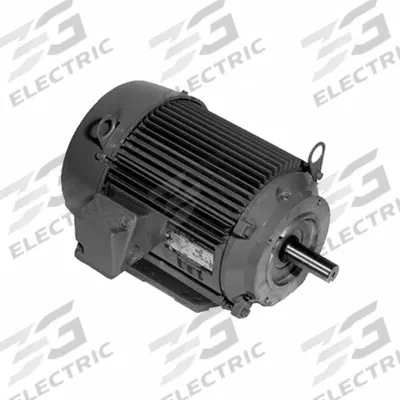

U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 10 hp

The U.S. MOTORS U10P3DCR is a 10 hp C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It operates at 1,180 RPM and is rated for 208-230/460V AC with a full load current of 27.1-24.6/12.3 A at 60 Hz.

SKU 3G-OTH-59985

Brand

U.S. MOTORS

Item

General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 10 hp

Technical Specifications

U.S. MOTORS

Manufacturer Part Number

U10P3DCR

Type

Totally Enclosed Fan Cooled, 10 hp

208-230/460V

Motor Enclosure

TEFC

Nameplate RPM @ 60 Hz

1,180 RPM

Full Load Current @ 60 Hz

27.1-24.6/12.3 A

Nameplate Voltage @ 60 Hz

208-230/460V AC

MOTORS General Purpose Motor

Flange Mount

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

U.S. MOTORS Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the U.S. MOTORS U10P3DCR general purpose motor used for?

The U.S. MOTORS U10P3DCR is a 10 hp C-Face 3-phase AC motor used in industrial applications such as pumps, fans, compressors, and conveyors. Its TEFC enclosure protects against dust and moisture, making it suitable for harsh environments. 3G Electric supplies this motor for worldwide delivery.

What are the specifications of the U.S. MOTORS U10P3DCR motor?

The U10P3DCR is a 10 hp, 1,180 RPM, 208-230/460V AC, 3-phase motor with a TEFC enclosure. Full load current is 27.1-24.6/12.3 A at 60 Hz. It features a C-Face flange mount design. 3G Electric sources this U.S. MOTORS motor for global customers.

Where to buy the U.S. MOTORS U10P3DCR motor worldwide?

You can order the U.S. MOTORS U10P3DCR motor through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this C-Face TEFC motor.

How to select the right U.S. MOTORS general purpose motor for an application?

Select based on required horsepower, voltage (e.g., 208-230/460V AC), RPM (e.g., 1,180 RPM), and enclosure type (TEFC for dusty/wet areas). Ensure the mounting style (C-Face flange) matches your equipment. 3G Electric can help source the correct U.S. MOTORS motor for your needs.

Used in

Common applications for U.S. MOTORS

Pumping systems — U.S. MOTORS A40P1CS (40 hp, 460 V, 3,570 RPM) for centrifugal water pumps in industrial facilities.

HVAC fans — U.S. MOTORS A7P4C (7.5 hp, 460 V, 885 RPM) for large air-handling unit fan drives.

Conveyor drives — U.S. MOTORS A25P1CS (25 hp, 460 V, 3,565 RPM) for material-handling belt conveyors.

Compressor applications — U.S. MOTORS A30P3C (30 hp, 460 V, 1,190 RPM) for rotary screw air compressors.

Machine tool spindles — U.S. MOTORS HD3P1H (3 hp, 200 V, 3,535 RPM) for high-speed milling machine spindles.

Elevator traction — U.S. MOTORS elevator motors (specialized line) for hydraulic or traction elevator systems.

U.S. MOTORS Products

3G Electric supplies U.S. MOTORS c-face 3-phase general purpose ac motors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
