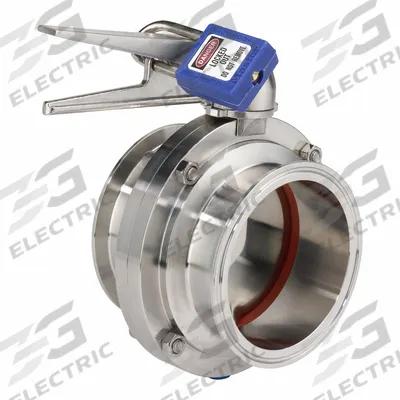

VNE Butterfly Valve: 1 in Pipe Size, Clamp, 145 psi Max. Pressure (CWP), 316 Stainless Steel - 3-A Certified Stainless Steel Butterfly Valves
VNE3-A Certified Stainless Steel Butterfly Valves

VNE Butterfly Valve: 1 in Pipe Size, Clamp, 145 psi Max. Pressure (CWP), 316 Stainless Steel

The VNE Butterfly Valve is a 3-A Certified Stainless Steel Butterfly Valve with a 1 in pipe size and clamp connection, rated for 145 psi max. pressure (CWP). It features a 316 SS body and disc, a lever handle, and 12…

SKU 3G-OTH-453382

Brand
VNE
Item
Butterfly Valve: 1 in Pipe Size, Clamp, 145 psi Max. Pressure
Category
3-A Certified Stainless Steel Butterfly Valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

VNE
Manufacturer Part Number
625-10827
Type
Clamp, FKM
Handle Type
Lever
Body Material
316 SS
Disc Material
316 SS
Stop Positions
12
Stainless Steel
316
Max. Pressure (CWP)
145 psi
Average Surface Roughness (Ra)
20RA ID/32RA OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

VNE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The VNE Butterfly Valve is a 3-A Certified Stainless Steel Butterfly Valve with a 1 in pipe size and clamp connection, rated for 145 psi max. pressure (CWP). It features a 316 SS body and disc, a lever handle, and 12 stop positions. The valve has an average surface roughness of 20RA ID/32RA OD, meeting sanitary standards for industrial processing applications.

Frequently Asked Questions

What is the VNE butterfly valve used for?

The VNE butterfly valve is used for on-off flow control in sanitary industrial processing applications, such as food, dairy, beverage, and pharmaceutical lines. Its 3-A certification and 20RA ID/32RA OD surface finish meet strict hygiene standards for clean-in-place systems.

What are the specifications of the VNE butterfly valve?

This VNE butterfly valve has a 1 in pipe size with a clamp connection, 316 SS body and disc, lever handle with 12 stop positions, and a max. pressure rating of 145 psi (CWP). It includes an FKM seal and meets 3-A sanitary standards with 20RA ID/32RA OD surface roughness.

Where to buy the VNE butterfly valve worldwide?

3G Electric supplies the VNE butterfly valve worldwide, handling full logistics and customs clearance for international delivery. As a global industrial solutions provider, we source genuine VNE parts and support procurement across 14 departments, including valves and instrumentation.

How to install a VNE butterfly valve?

Install the VNE butterfly valve between two clamp ferrules using a compatible gasket and clamp. Ensure the disc is fully closed before tightening the clamp evenly to avoid seal damage. Verify the lever handle aligns with the 12 stop positions for proper open-close indication.

Used in

Common applications for VNE
Dairy processing — VNE EG45BY-6 ball check valves for backflow prevention in pasteurization lines
Beverage bottling — VNE 93C series pneumatically actuated three-way ball valves for product diversion
Pharmaceutical compounding — VNE EG90CC manual two-way ball valves for sterile fluid transfer
Food ingredient handling — VNE 625 series butterfly valves for flow control in CIP systems
Bioprocessing — VNE 45C spring check valves for preventing contamination in fermentation loops

VNE Products

3G Electric supplies VNE 3-a certified stainless steel butterfly valves. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
