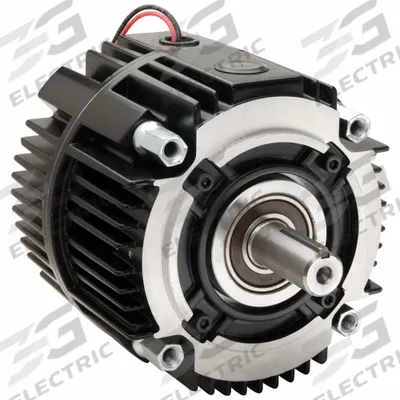

WARNER ELECTRIC Clutch/Brake: 90V DC, 90V DC, 90V DC, Vented, 30 ft-lb Static Torque

The WARNER ELECTRIC UM180-1020-90 is a combined clutch and brake unit used to control start-stop motion in industrial machinery. It is designed for NEMA C-Face motors and reducers, making it suitable for conveyors, packaging equipment, and material handling systems that require precise engagement and braking.

The UM180-1020-90 operates on 90V DC and delivers 30 ft-lb of static torque. It features a vented enclosure, mounts on a NEMA C-Face motor or between motor and reducer, and is compatible with a 182C NEMA motor frame. The unit includes mounting hardware and is manufactured by WARNER ELECTRIC.

3G Electric supplies the WARNER ELECTRIC UM180-1020-90 clutch/brake unit to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this part.

Mount the UM180-1020-90 directly on a NEMA C-Face motor shaft or between the motor and reducer using the included mounting hardware. Ensure the vented enclosure is unobstructed for cooling. Align the unit properly to avoid binding, and connect the 90V DC power supply per WARNER ELECTRIC wiring guidelines.
