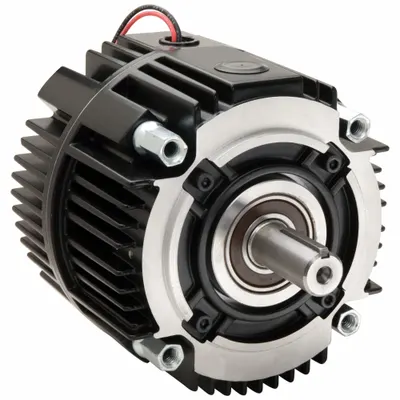

WARNER ELECTRIC UM100-1020-90 Combined Clutch & Brake Unit
The WARNER ELECTRIC UM100-1020-90 is a 90V DC combined clutch and brake unit designed for use with NEMA C-Face motors and reducers. It features a vented enclosure, mounts on a NEMA C-Face motor or between the motor…
SKU 3G-OTH-109289
Also listed as: UM100102090 · UM100 1020 90
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The WARNER ELECTRIC UM100-1020-90 is a 90V DC combined clutch and brake unit designed for use with NEMA C-Face motors and reducers. It features a vented enclosure, mounts on a NEMA C-Face motor or between the motor and reducer, and is compatible with 56C NEMA motor frames. The unit includes mounting hardware and delivers 30 ft-lb static torque.
Frequently Asked Questions
What is the WARNER ELECTRIC UM100-1020-90 clutch/brake used for?
The WARNER ELECTRIC UM100-1020-90 is a combined clutch and brake unit used to control start/stop and positioning on industrial machinery driven by NEMA C-Face motors or reducers. It is commonly applied in conveyors, packaging equipment, and material handling systems where precise engagement and rapid stopping are required.
What are the specifications of the WARNER ELECTRIC UM100-1020-90?
The UM100-1020-90 operates on 90V DC, delivers 30 ft-lb static torque, and fits 56C NEMA motor frames. It has a vented enclosure, mounts on a NEMA C-Face motor or between motor and reducer, and includes mounting hardware. The manufacturer part number is UM100-1020-90.
Where to buy the WARNER ELECTRIC UM100-1020-90 worldwide?
3G Electric supplies the WARNER ELECTRIC UM100-1020-90 clutch/brake unit worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this part to any international destination.
How to install the WARNER ELECTRIC UM100-1020-90 clutch/brake?
Mount the UM100-1020-90 directly onto a NEMA C-Face motor shaft or between the motor and reducer using the included mounting hardware. Ensure the vented enclosure allows airflow for cooling. Align the unit per the motor manufacturer's instructions and connect 90V DC power. Always follow generic best practices for electrical safety and torque settings.
Used in
Common applications for WARNER ELECTRICWARNER ELECTRIC Products
3G Electric supplies WARNER ELECTRIC combined clutch & brake units. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
