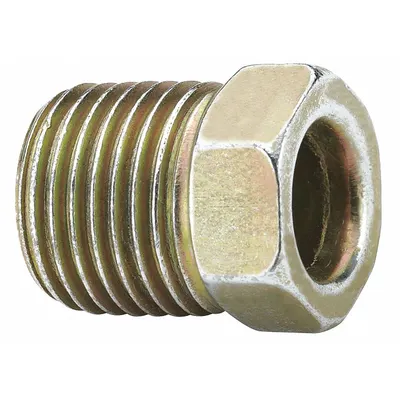

WEATHERHEAD Flared Fitting Nut: 5/16 in OD Fitting Size, Flared, 1/2"-20 Thread Size A
The WEATHERHEAD 105X5 is a DOT Brass Inverted Flare Tube Fitting, a flared fitting nut for 5/16 in OD tubing. It features a 1/2"-20 thread size A, 5/8 in overall length, and meets SAE 040110 standards. 3G Electric…
SKU 3G-OTH-661393
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The WEATHERHEAD 105X5 is a DOT Brass Inverted Flare Tube Fitting, a flared fitting nut for 5/16 in OD tubing. It features a 1/2"-20 thread size A, 5/8 in overall length, and meets SAE 040110 standards. 3G Electric interprets this demand and supplies this genuine industrial fitting across 14 departments, with specialist depth in combustion, pumps, and controls as an authorised distributor.
Frequently Asked Questions
What is the WEATHERHEAD 105X5 flared fitting nut used for?
The WEATHERHEAD 105X5 is a DOT brass inverted flare tube fitting nut used to create leak-proof connections in hydraulic and fuel systems. It is designed for 5/16 in OD tubing and is commonly applied in automotive, industrial, and fluid power systems requiring SAE 040110 compliance.
What are the specifications of the WEATHERHEAD 105X5?
The WEATHERHEAD 105X5 is a flared fitting nut with a 5/16 in OD fitting size, 1/2"-20 thread size A, and 5/8 in overall length. It is made of brass and meets SAE 040110 standards. The manufacturer part number is 105X5.
Where to buy the WEATHERHEAD 105X5 worldwide?
3G Electric supplies the genuine WEATHERHEAD 105X5 brass flared fitting nut worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us to order this SAE 040110 compliant fitting for your application.
How to install a WEATHERHEAD inverted flare fitting nut?
To install the WEATHERHEAD 105X5, slide the nut over the tubing, then flare the tube end using a proper flaring tool. Thread the nut onto the mating fitting and tighten to the recommended torque. Avoid over-tightening to prevent damage to the brass threads. Always follow SAE 040110 guidelines.
Used in
Common applications for WEATHERHEADWEATHERHEAD Products
3G Electric supplies WEATHERHEAD dot brass inverted flare tube fittings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
