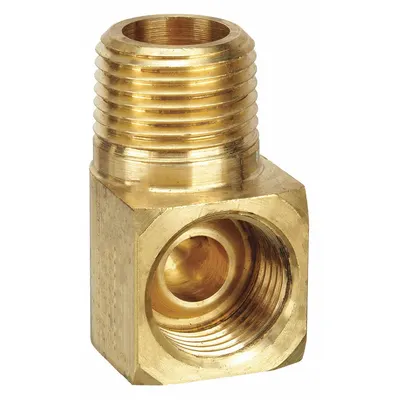

WEATHERHEAD Standard Brass Inverted Flare Tube Fitting Elbow
The WEATHERHEAD 402X4X4 is a standard brass inverted flared tube fitting, specifically a flared fitting elbow with a 1/4 in OD x 1/4 in pipe fitting size. This threaded component features a 7/16"-24 thread size A, is…
SKU 3G-OTH-655590
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ask a question
Request a QuoteAsk a question
Product Description
The WEATHERHEAD 402X4X4 is a standard brass inverted flared tube fitting, specifically a flared fitting elbow with a 1/4 in OD x 1/4 in pipe fitting size. This threaded component features a 7/16"-24 thread size A, is constructed from brass, and meets MS standards.
Frequently Asked Questions
What is the WEATHERHEAD 402X4X4 flared fitting elbow used for?
The WEATHERHEAD 402X4X4 is a standard brass inverted flared tube fitting elbow used to connect 1/4 in OD tubing to a 1/4 in pipe thread in hydraulic, pneumatic, and fluid transfer systems. It is common in industrial machinery, automotive, and instrumentation applications requiring a leak-resistant, threaded brass connection.
What are the specifications of the WEATHERHEAD 402X4X4?
The WEATHERHEAD 402X4X4 is a brass inverted flared tube fitting elbow with a 1/4 in OD tube size and 1/4 in pipe fitting size. It has a 7/16"-24 thread size A, is threaded type, and meets MS standards. The manufacturer part number is 402X4X4.
Where to buy the WEATHERHEAD 402X4X4 worldwide?
3G Electric supplies the WEATHERHEAD 402X4X4 brass inverted flared fitting elbow to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this genuine WEATHERHEAD part.
How to install a WEATHERHEAD inverted flared fitting?
To install a WEATHERHEAD inverted flared fitting like the 402X4X4, first cut the tubing square and deburr the end. Slide the nut and sleeve onto the tube, then flare the tube end using the correct flaring tool for 1/4 in OD. Tighten the nut onto the fitting elbow to the manufacturer's recommended torque to create a metal-to-metal seal.
