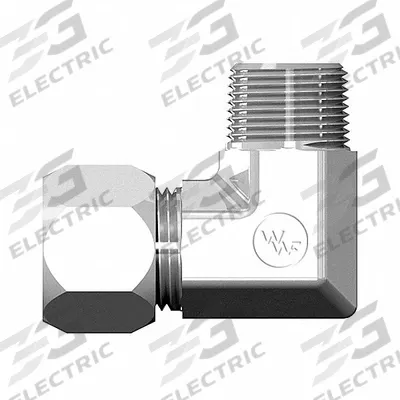

WEATHERHEAD Compression Fitting Elbow: 1/2 in OD x 3/8 in Pipe Size - Flareless Bite-Type Steel Compression Fittings
WEATHERHEADFlareless Bite-Type Steel Compression Fittings

WEATHERHEAD Compression Fitting Elbow: 1/2 in OD x 3/8 in Pipe Size

The WEATHERHEAD Compression Fitting Elbow (MPN 7405X08X06) is a flareless bite-type steel compression fitting from the Ermeto Flareless series, designed for 1/2 in OD tube to 3/8 in pipe size connections with 3/4-16…

SKU 3G-OTH-470107

Brand
WEATHERHEAD
Item
Compression Fitting Elbow: 1/2 in OD x 3/8 in Pipe Size
Category
Flareless Bite-Type Steel Compression Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WEATHERHEAD
Manufacturer Part Number
7405X08X06
Series
Ermeto Flareless
Thread Size
3/4-16 x 3/8-18
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WEATHERHEAD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WEATHERHEAD Compression Fitting Elbow (MPN 7405X08X06) is a flareless bite-type steel compression fitting from the Ermeto Flareless series, designed for 1/2 in OD tube to 3/8 in pipe size connections with 3/4-16 x 3/8-18 thread sizes.

Frequently Asked Questions

What is a WEATHERHEAD Ermeto Flareless compression fitting elbow used for?

The WEATHERHEAD Ermeto Flareless compression fitting elbow (MPN 7405X08X06) connects 1/2 in OD tube to 3/8 in pipe in hydraulic and pneumatic systems. Its bite-type design creates a leak-proof seal without flaring, ideal for high-pressure industrial applications across machining, power transmission, and instrumentation.

What are the specifications of the WEATHERHEAD 7405X08X06 compression fitting?

This WEATHERHEAD Ermeto Flareless elbow has a 3/4-16 x 3/8-18 thread size, connecting 1/2 in OD tube to 3/8 in pipe. It is a flareless bite-type steel compression fitting from the Ermeto Flareless series, designed for reliable sealing in demanding fluid systems.

Where to buy WEATHERHEAD compression fittings in worldwide?

3G Electric supplies and delivers WEATHERHEAD Ermeto Flareless compression fittings, including the 7405X08X06 elbow, to worldwide locations. We handle full logistics and customs clearance as a global industrial solutions provider, ensuring you get the right part for your application.

How to install a WEATHERHEAD flareless bite-type compression fitting?

To install a WEATHERHEAD Ermeto Flareless fitting, insert the tube fully into the fitting until it bottoms out, then tighten the nut to the manufacturer's recommended torque. The bite ring grips the tube without flaring, creating a leak-proof seal. Always follow WEATHERHEAD's installation guidelines for proper performance.

Used in

Common applications for WEATHERHEAD
Mobile hydraulic systems — Weatherhead hydraulic flange fittings (e.g., 12Z-G42) for hose assemblies in excavators and loaders
Pneumatic tool lines — Weatherhead quick-connect couplings (e.g., 430) for air supply connections in manufacturing plants
Industrial machinery — Weatherhead 45° elbow flange fittings (e.g., 20Z-G54) for hydraulic power units
Fluid transfer systems — Weatherhead straight flange fittings (e.g., 16Z-G20) for high-pressure oil lines
Maintenance and repair — Weatherhead quick-connect bodies (e.g., 580) for replacing worn couplings on pneumatic tools
Hydraulic press applications — Weatherhead 90° elbow flange fittings (e.g., 24Z-G84) for compact hose routing in tight spaces
