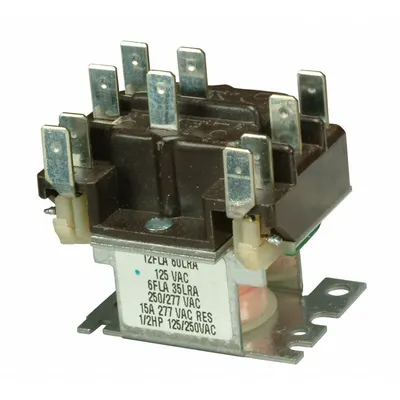

WHITE-RODGERS 90 341S1 Surface-Mounted Magnetic Relay
The WHITE-RODGERS Magnetic Relay is a surface-mounted relay with a universal mounting style and quick-connect electrical connection. It features a DPDT configuration, a 66 mA current rating, and operates at 115/120V…
SKU 3G-OTH-36913
Also listed as: 90341S1 · 90-341S1
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The WHITE-RODGERS Magnetic Relay is a surface-mounted relay with a universal mounting style and quick-connect electrical connection. It features a DPDT configuration, a 66 mA current rating, and operates at 115/120V AC. The relay is rated for 15 A at 277V AC (resistive load), with manufacturer part number 90 341S1.
Frequently Asked Questions
What is the WHITE-RODGERS 90 341S1 magnetic relay used for?
The WHITE-RODGERS 90 341S1 magnetic relay is used for switching resistive loads in HVAC, industrial control, and commercial equipment. Its DPDT configuration and 15 A at 277V AC rating make it suitable for motor starters, lighting contactors, and general-purpose switching where reliable surface mounting is required.
What are the specifications of the WHITE-RODGERS 90 341S1 relay?
The WHITE-RODGERS 90 341S1 is a surface-mounted magnetic relay with DPDT contacts, 66 mA coil current rating, and operates at 115/120V AC. It handles 15 A at 277V AC (resistive load) and features a universal mounting style with quick-connect electrical connections.
Where to buy the WHITE-RODGERS 90 341S1 relay worldwide?
3G Electric supplies the WHITE-RODGERS 90 341S1 magnetic relay to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this part number.
How to install a WHITE-RODGERS surface-mounted relay?
Mount the WHITE-RODGERS 90 341S1 relay on a clean, flat surface using the universal mounting holes. Connect wires to the quick-connect terminals per the wiring diagram, ensuring the coil voltage matches 115/120V AC. Verify the load does not exceed 15 A at 277V AC resistive. Always follow local electrical codes.
