WINSMITH E30XWNS 15:1 Indirect-Drive Right-Angle Speed Reducer - Indirect-Drive Right-Angle Speed Reducers
WINSMITHIndirect-Drive Right-Angle Speed Reducers

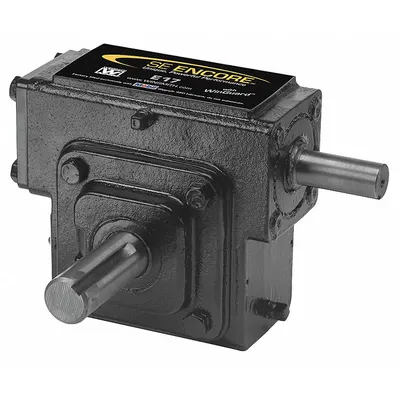

WINSMITH E30XWNS 15:1 Indirect-Drive Right-Angle Speed Reducer

The WINSMITH Speed Reducer: 15:1 is an indirect-drive right-angle speed reducer featuring a solid input shaft. It delivers a 15:1 ratio with 115 RPM output, a maximum input of 5 hp, and a maximum output torque of…

SKU 3G-OTH-142334

Also listed as: E30XWNS151 · E30XWNS 15 1 · E30XWNS-15-1

Brand
WINSMITH
Item
E30XWNS 15:1 Indirect-Drive Right-Angle Speed Reducer
Part Number
E30XWNS, 15:1
Category
Indirect-Drive Right-Angle Speed Reducers
Available to Order
Also known as:E30XWNS, 15:1WINSMITH
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. Bank transfer and corporate PO accepted.

Technical Specifications

WINSMITH
Manufacturer Part Number
E30XWNS, 15:1
Type
115 RPM, 2542 in-lb Output Max, Round, Any Angle
Input Max
5 hp

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Ask a question

Request a Quote

Ask a question

WINSMITH Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WINSMITH Speed Reducer: 15:1 is an indirect-drive right-angle speed reducer featuring a solid input shaft. It delivers a 15:1 ratio with 115 RPM output, a maximum input of 5 hp, and a maximum output torque of 2542 in-lb. This round unit is designed for any-angle mounting and is identified by manufacturer part number E30XWNS.

Frequently Asked Questions

What is a WINSMITH 15:1 speed reducer used for?

The WINSMITH 15:1 speed reducer is an indirect-drive right-angle gearbox used to reduce motor speed and increase torque in industrial machinery. It is commonly applied in conveyors, packaging equipment, and material handling systems where precise speed control and high torque are required.

What are the specifications of the WINSMITH E30XWNS speed reducer?

The WINSMITH E30XWNS speed reducer has a 15:1 ratio, 115 RPM output, 5 hp maximum input, and 2542 in-lb maximum output torque. It features a solid input shaft, round housing, and supports any-angle mounting. The manufacturer part number is E30XWNS, 15:1.

Where to buy a WINSMITH speed reducer worldwide?

3G Electric supplies the WINSMITH E30XWNS speed reducer to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this 15:1 right-angle gearbox.

How to select the right WINSMITH speed reducer for an application?

To select the correct WINSMITH speed reducer, match the required output speed and torque to the unit's specifications: 115 RPM output and 2542 in-lb maximum torque. Verify the input shaft type (solid) and mounting orientation (any angle). Consult the manufacturer's catalog for service factors and thermal ratings.
