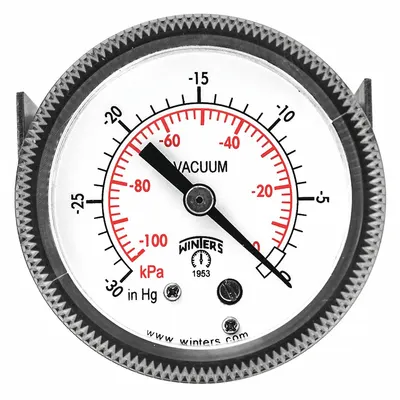

WINTERS U-Clamp Panel-Mount Vacuum Gauge - U-Clamp Panel-Mount with Brass/Bronze Wetted Parts
WINTERSU-Clamp Panel-Mount with Brass/Bronze Wetted Parts

WINTERS U-Clamp Panel-Mount Vacuum Gauge

The WINTERS Panel-Mount Vacuum Gauge: U-Clamp (SKU P9U901424UC, MPN P9U901424UC) is a U-clamp panel-mount gauge with brass/bronze wetted parts. It features a 2-inch dial, 1/8-inch NPT male center back connection, and…

SKU 3G-OTH-178792

Brand
WINTERS
Item
U-Clamp Panel-Mount Vacuum Gauge
Part Number
P9U901424UC
Category
U-Clamp Panel-Mount with Brass/Bronze Wetted Parts
Available to Order
Also known as:P9U901424UCWINTERS
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Payment
Invoicing in SGD. Bank transfer and corporate PO accepted.

Technical Specifications

WINTERS
Manufacturer Part Number
P9U901424UC
Type
Center Back, ±2-1-2% Accuracy
Dial
2 in
Accuracy
±2-1-2%
NPT Male
1/8 in
Gauge Wetted Parts
Brass / Bronze
Vibration Resistance Properties
None

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Ask a question

Request a Quote

Ask a question

WINTERS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WINTERS Panel-Mount Vacuum Gauge: U-Clamp (SKU P9U901424UC, MPN P9U901424UC) is a U-clamp panel-mount gauge with brass/bronze wetted parts. It features a 2-inch dial, 1/8-inch NPT male center back connection, and an accuracy of ±2-1-2%. This gauge has no vibration resistance properties.

Frequently Asked Questions

What is the WINTERS Panel-Mount Vacuum Gauge used for?

The WINTERS Panel-Mount Vacuum Gauge is used to measure negative pressure (vacuum) in industrial systems such as pumps, compressors, and filtration equipment. Its U-clamp design allows secure panel mounting, and the brass/bronze wetted parts make it suitable for non-corrosive gases and liquids.

What are the specifications of the WINTERS Panel-Mount Vacuum Gauge?

The WINTERS Panel-Mount Vacuum Gauge (MPN P9U901424UC) has a 2-inch dial, 1/8-inch NPT male center back connection, and ±2-1-2% accuracy. It features brass/bronze wetted parts and no vibration resistance. The U-clamp enables panel mounting for stable readings in vacuum applications.

Where to buy the WINTERS Panel-Mount Vacuum Gauge worldwide?

You can source the WINTERS Panel-Mount Vacuum Gauge through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this gauge.

How to install the WINTERS Panel-Mount Vacuum Gauge?

Install the WINTERS gauge by inserting it through a panel cutout and tightening the U-clamp from behind. Connect the 1/8-inch NPT male center back fitting to a compatible port using thread sealant. Avoid overtightening to prevent damage to the brass/bronze wetted parts.

Used in

Common applications for WINTERS
Food and beverage processing — WINTERS PSQ series 3-A certified sanitary pressure gauges with Tri-Clamp connections for hygienic pressure monitoring.
Pharmaceutical production — WINTERS PSQ sanitary gauges with 304 stainless steel wetted parts and ±1.50% accuracy for clean-in-place systems.
Automotive and light truck maintenance — WINTERS dial tire pressure gauge with steel construction and 2 psi increments for inflation checks.
HVAC and filter monitoring — WINTERS PFD series low operating pressure differential gauge with diaphragm sensor and IP54 rating.
OEM equipment and control panels — WINTERS PFQ series front-flange panel-mount pressure gauges with brass/bronze wetted parts and 1/4 in NPT connections.
Vacuum service — WINTERS PFQ series panel-mount vacuum gauge with 2 1/2 in dial and field-fillable option for vibration resistance.
