3m 3G-OTH-546718 — Technical Specifications

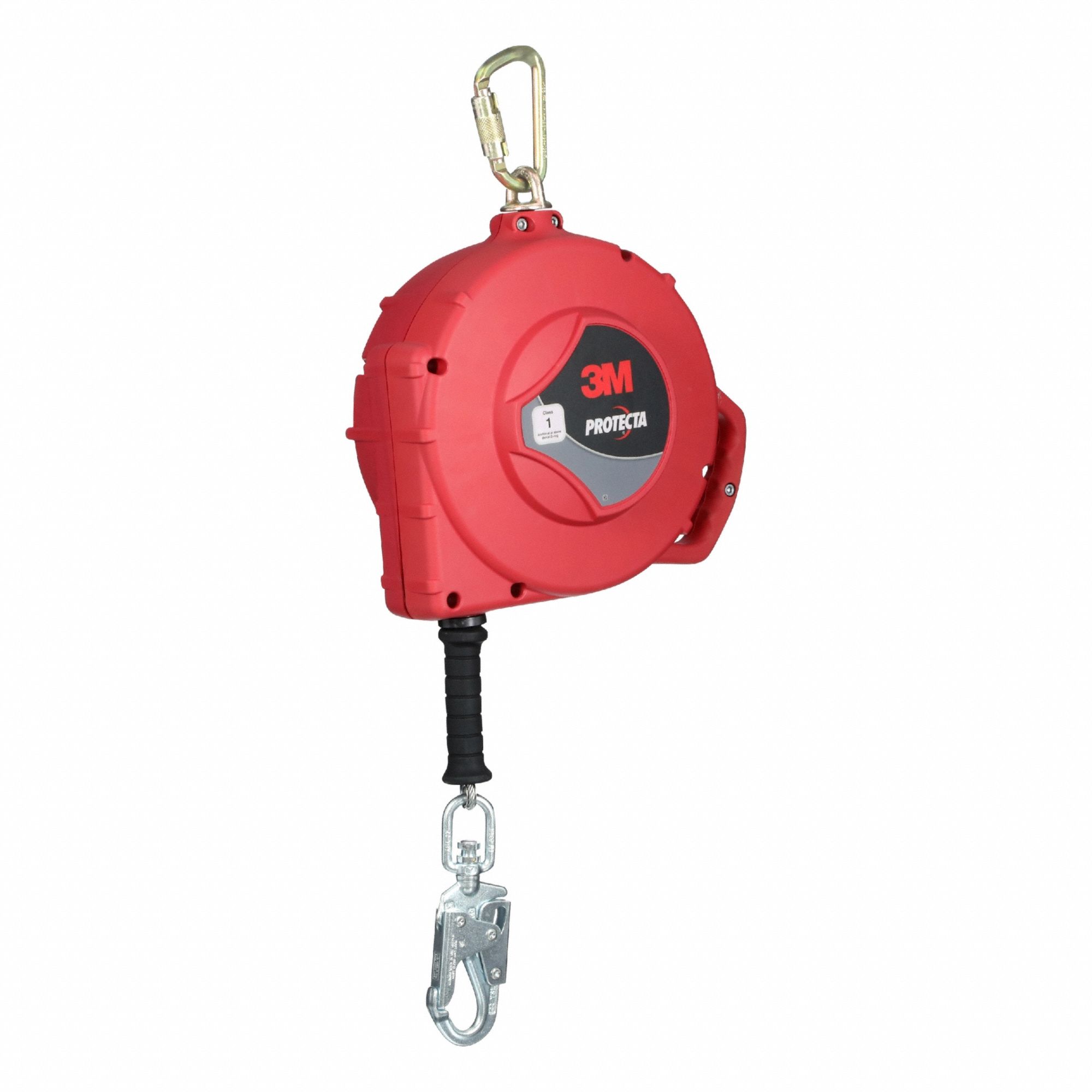

The 3M Protecta(R) Self-Retracting Lifeline (SRL) is a mounted SRL with a 66 ft steel lifeline, steel carabiner anchor, and harness steel swivel snap hook. It is sealed, rated ANSI Class 1 (2021), and designed for overhead-only anchoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Line | 66 ft |
| Type | Harness Steel Swivel Snap Hook |
| Brand | 3M |
| Sealed | Yes |
| Series | Protecta(R) |
| Housing | Sealed |
| ANSI SRL Type | SRL |
| RFID Equipped | No |
| Sealed Subhead | Sealed |
| Lifeline Material | Steel |
| Anchoring Location | Overhead Only |
| ANSI SRL Class (2014) | Not Rated |
| ANSI SRL Class (2021) | Class 1 |
| Manufacturer Part Number | 3590040 |
| Anchorage End Connection Type | Carabiner |
