3m 3G-OTH-546758 — Technical Specifications

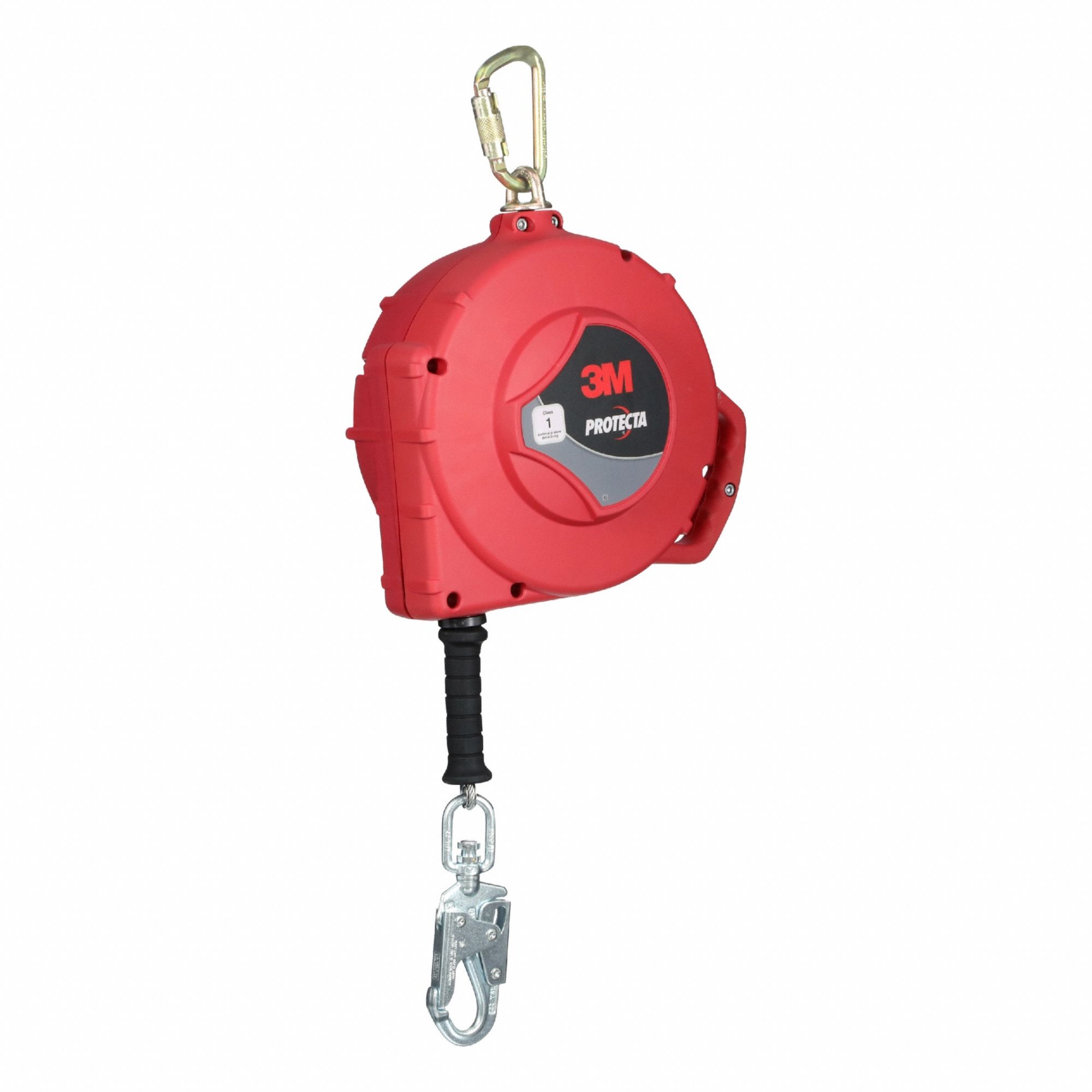

The 3M Self-Retracting Lifeline: Steel Carabiner Anchor (MPN 3590045) is a mounted SRL from the Protecta(R) series with a 100 ft stainless steel lifeline and a carabiner anchorage end connection. It is ANSI Class 1 (2021) and sealed for overhead-only anchoring, featuring a harness steel swivel snap hook.
Technical Specifications
| Parameter | Value |
|---|---|
| Line | 100 ft |
| Type | Harness Steel Swivel Snap Hook |
| Brand | 3M |
| Sealed | Yes |
| Series | Protecta(R) |
| Housing | Sealed |
| ANSI SRL Type | SRL |
| RFID Equipped | No |
| Sealed Subhead | Sealed |
| Lifeline Material | Stainless Steel |
| Anchoring Location | Overhead Only |
| ANSI SRL Class (2014) | Not Rated |
| ANSI SRL Class (2021) | Class 1 |
| Manufacturer Part Number | 3590045 |
| Anchorage End Connection Type | Carabiner |
