5-2-1 Compressor Saver 3G-OTH-21423 — Technical Specifications

Name: 5-2-1 Compressor Saver 3G-OTH-21423 5-2-1 COMPRESSOR SAVER Thermal Protected Surge Protection Device: Single Phase, 120/240V AC, Plastic (MPN TPSPD). Key specifications — Voltage: 120/240V AC; Max. Continuing Operating Voltage: 150/300 V AC; Voltage Protection Rating: 600V (L-N,L-G); Enclosure Material: Plastic; Max. Surge Current per Mode: 100 kA; Brand: 5-2-1 COMPRESSOR SAVER.
Brand: 5-2-1 Compressor Saver

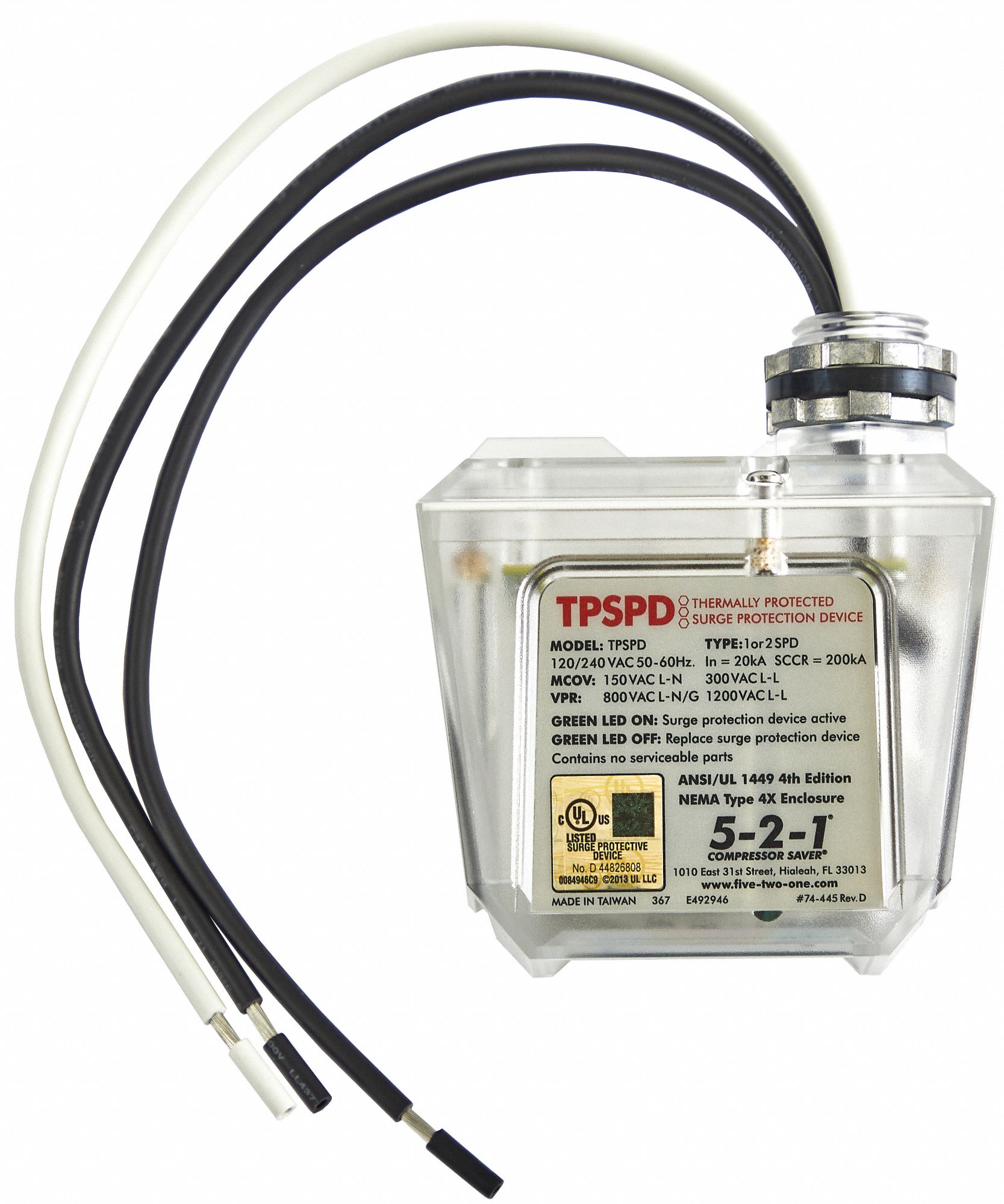

The 5-2-1 COMPRESSOR SAVER Thermal Protected Surge Protection Device (MPN TPSPD) is a single-phase, external-mount SPD for HVAC equipment. It operates at 120/240V AC with a max. continuing operating voltage of 150/300 V AC and a voltage protection rating of 600V (L-N,L-G). The plastic enclosure houses a max. surge current per mode of 100 kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120/240V
Type	Plastic
Brand	5-2-1 COMPRESSOR SAVER
Device	Single Phase
Voltage	120/240V AC
Enclosure Material	Plastic
Manufacturer Part Number	TPSPD
Voltage Protection Rating	600V (L-N,L-G)
Max. Surge Current Per Mode	100 kA
Max. Continuing Operating Voltage	150/300 V AC
