80/20 3G-OTH-347825 — Technical Specifications

Name: 80/20 3G-OTH-347825 Bolt Assembly: M6 Size, 14 mm Thread Lg, Flat Head Socket Cap, For 8.2 mm Slot Wd, 30 Series, 6 PK (MPN 75-3585-6). Key specifications — Fastener Type: Hammer Nut; Fastener Head Type: Flat Head Socket Cap; Material: Steel; Finish: Zinc-Plated; T-Slot Fastener Type: Bolt Assembly; Threaded Hole Location: Single Center; Compatible Series: 80/20 30 Series; System of Measurement: Metric.
Brand: 80/20

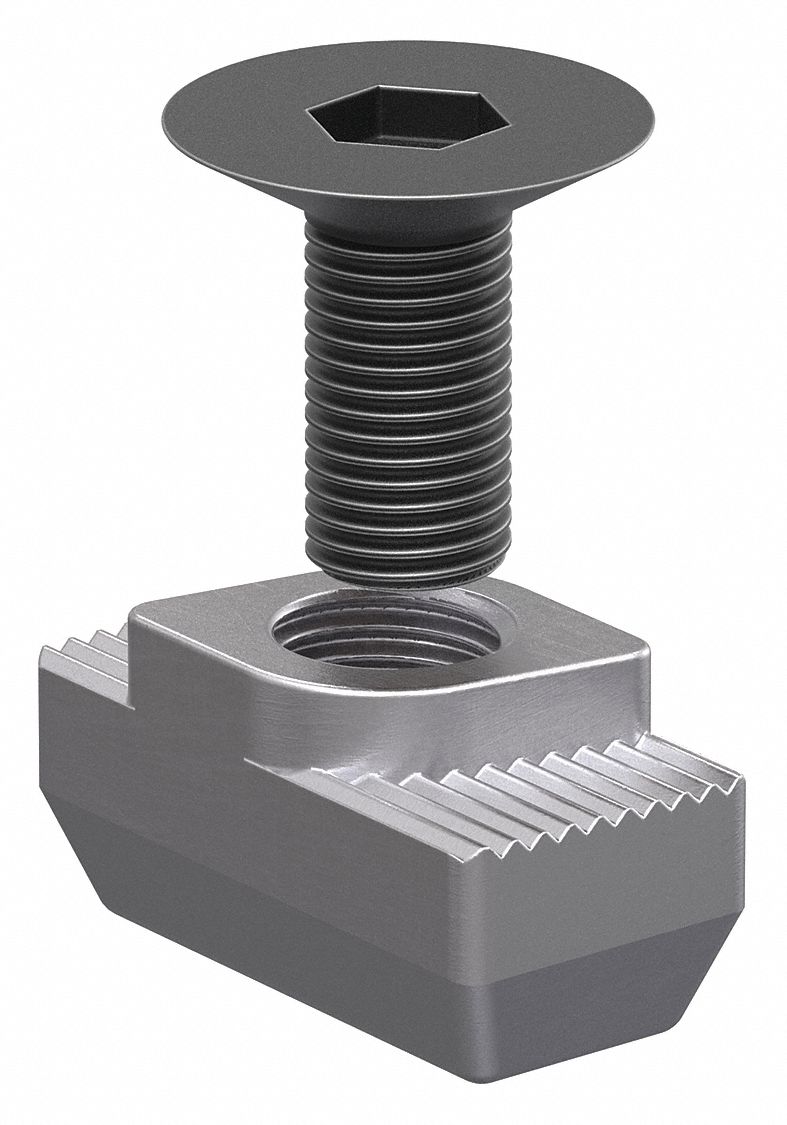

The 80/20 Bolt Assembly (SKU 5JRJ4) is a metric drop-in T-nut fastener, specifically a hammer nut with a flat head socket cap, designed for use with 80/20 30 Series T-slot framing. This steel, zinc-plated assembly features an M6 size with a 14 mm thread length and a single center threaded hole, compatible with an 8.2 mm slot width. It is supplied as a 6-pack under manufacturer part number 75-3585-6.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Flat Head Socket Cap, For 8.2 mm Slot Wd, 6 PK
Brand	80/20
Finish	Zinc-Plated
Series	30
Material	Steel
Thread Lg	14 mm
Fastener Type	Hammer Nut
Mounting Type	Drop-In
Compatible Series	80/20 30 Series
Fastener Head Type	Flat Head Socket Cap
T-Slot Fastener Type	Bolt Assembly
System Of Measurement	Metric
Threaded Hole Location	Single Center
Manufacturer Part Number	75-3585-6
