Advance 3G-OTH-385873 — Technical Specifications

Name: Advance 3G-OTH-385873 ADVANCE LED Driver: Class 2, 80 W Max. Power Output, 120V AC, 24V DC, 0.80 to 3.30 A, No Dimming (MPN LED120A0024V33F). Key specifications — Brand: ADVANCE; Output Voltage: 24V DC; Dimming Method: No Dimming; Output Current: 0.80 to 3.30 A.
Brand: Advance

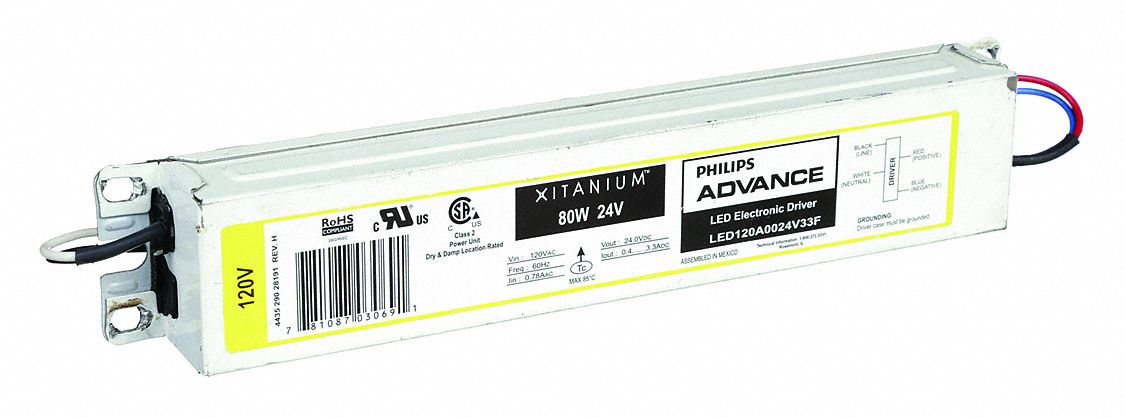

The ADVANCE LED Driver: Class 2 is a constant voltage driver with a 24V DC output and a maximum power output of 80 W. It operates on 120V AC input and delivers an output current of 0.80 to 3.30 A. This non-dimming driver (MPN LED120A0024V33F) is designed for Class 2 applications.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
DC	24V
Type	0.80 to 3.30 A, No Dimming
Brand	ADVANCE
Dimming Method	No Dimming
Output Current	0.80 to 3.30 A
Output Voltage	24V DC
Max. Power Output	80 W
Manufacturer Part Number	LED120A0024V33F
