Aims Power 3G-OTH-486749 — Technical Specifications

Name: Aims Power 3G-OTH-486749 AIMS POWER Inverter and Battery Charger: Pure Sine Wave, Post, 6,000 W Continuous Output Power (MPN PICOGLF60W24V240VS). Key specifications — Charger Input Voltage: 240V AC; Brand: AIMS POWER; Charger Output Voltage: 120V AC to 240V AC; DC Connection: Post; Inverter Input Voltage: 24V DC; Inverter Output Form: Pure Sine Wave; Inverter Output Voltage: 120/240V AC; Output Frequency: 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable.
Brand: Aims Power

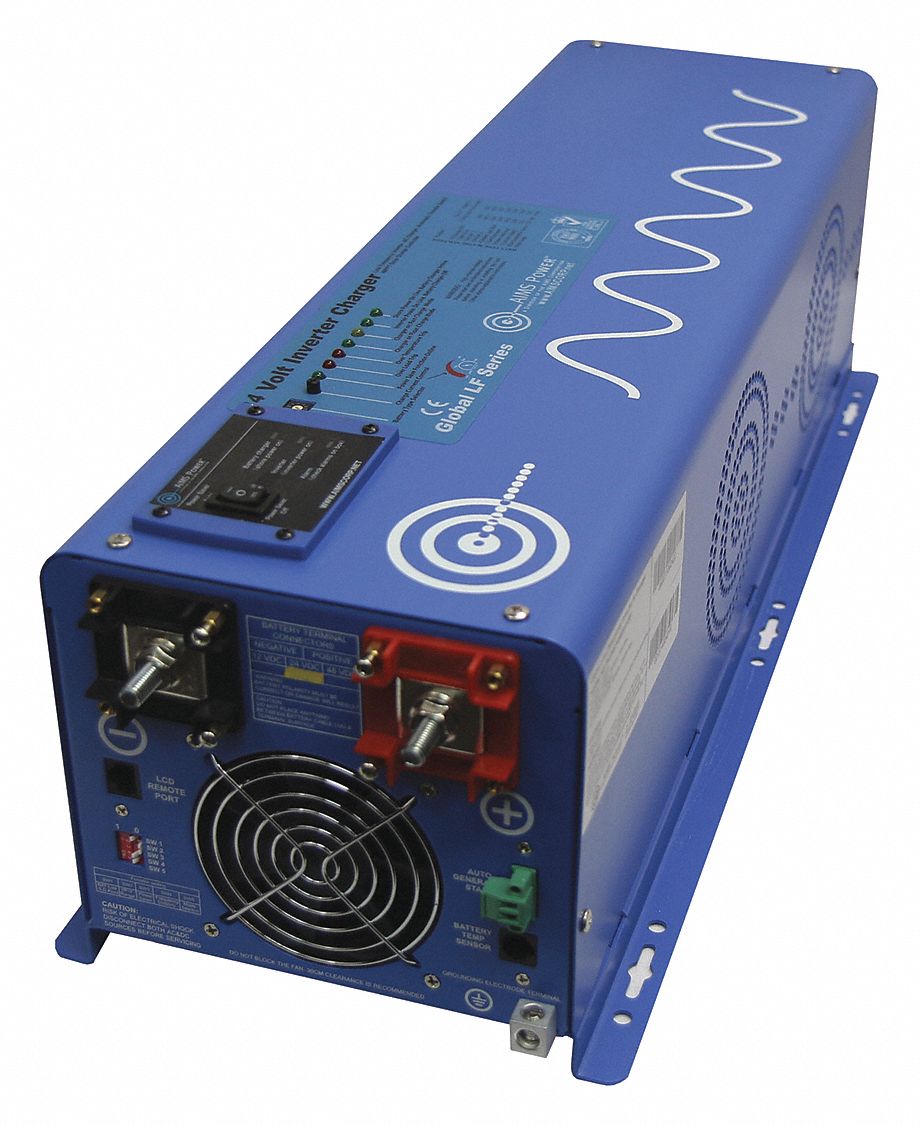

The AIMS POWER Inverter and Battery Charger (SKU 45TX15, MPN PICOGLF60W24V240VS) is a pure sine wave single-unit inverter with battery charger. It delivers 6,000 W continuous output power from a 24V DC input, providing 120/240V AC output at a selectable 50 +/- 0.3Hz or 60 +/- 0.3Hz frequency. The charger accepts 240V AC input and outputs 120V AC to 240V AC, with a post-type DC connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Post
Brand	AIMS POWER
DC Connection	Post
Output Voltage	240V AC
Output Frequency	50 +/- 0.3Hz or 60 +/- 0.3Hz selectable
Inverter Output Form	Pure Sine Wave
Charger Input Voltage	240V AC
Charger Output Voltage	120V AC to 240V AC
Inverter Input Voltage	24V DC
Continuous Output Power	6,000 W
Inverter Output Voltage	120/240V AC
Manufacturer Part Number	PICOGLF60W24V240VS
