Appleton Electric 3G-OTH-30234 — Technical Specifications

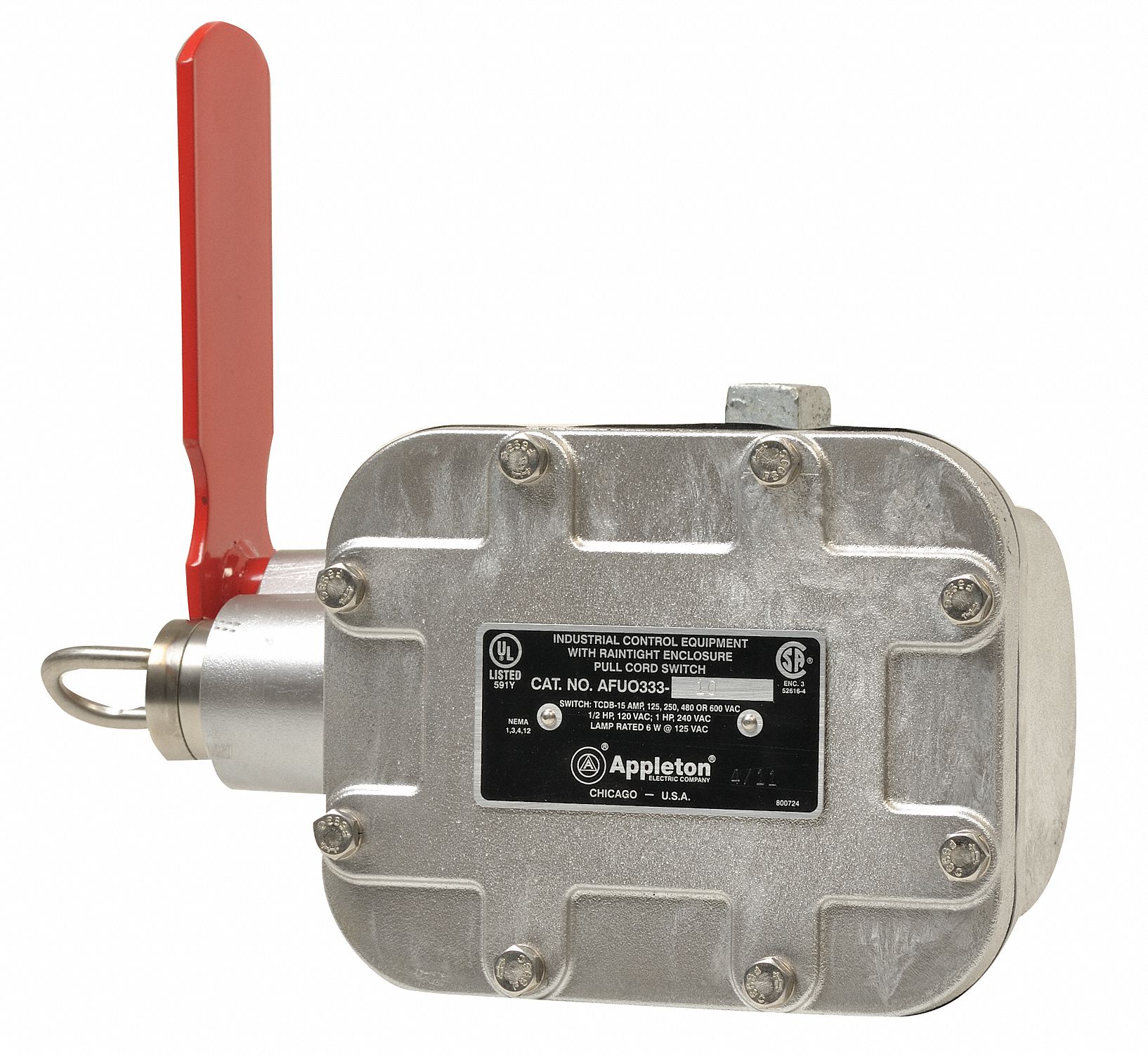

The APPLETON ELECTRIC AFUX Series Emergency Cable Pull Switch (MPN AFUX0333-80) is a single-head cable-pull switch with a maintained action and actuator reset. It features a cast aluminum case, a flag arm indicator, and conduit wiring entry. The switch is rated for 2 HP at 250V AC, with AC contact rating of 20 A at 480 V and DC contact rating of 0.25 A at 250 V.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Left Pull Cord |
| Brand | APPLETON ELECTRIC |
| Reset | Actuator |
| Action | Maintained |
| Series | AFUX |
| IP Rating | Not Rated |
| Indicator | Flag Arm |
| Horsepower | 2 HP @ 250V AC |
| Pull Force | 25 lb |
| Wiring Entry | Conduit |
| Case Material | Cast Aluminum |
| AC Contact Rating | 20 A @ 480 V |
| DC Contact Rating | 0.25 A @ 250 V |
| Manufacturer Part Number | AFUX0333-80 |
