Appleton Electric 3G-OTH-30227 — Technical Specifications

Name: Appleton Electric 3G-OTH-30227 APPLETON ELECTRIC Emergency Cable Pull Switch: AFUX Series, Left Pull Cord, 25 lb Pull Force (MPN AFUX0333-60). Key specifications — Case Material: Cast Aluminum; Horsepower: 1 HP @ 240V AC; IP Rating: Not Rated; Reset: Actuator; Indicator: Flag Arm; Wiring Entry: Conduit; Manufacturer Part Number: AFUX0333-60; Action: Maintained.
Brand: Appleton Electric

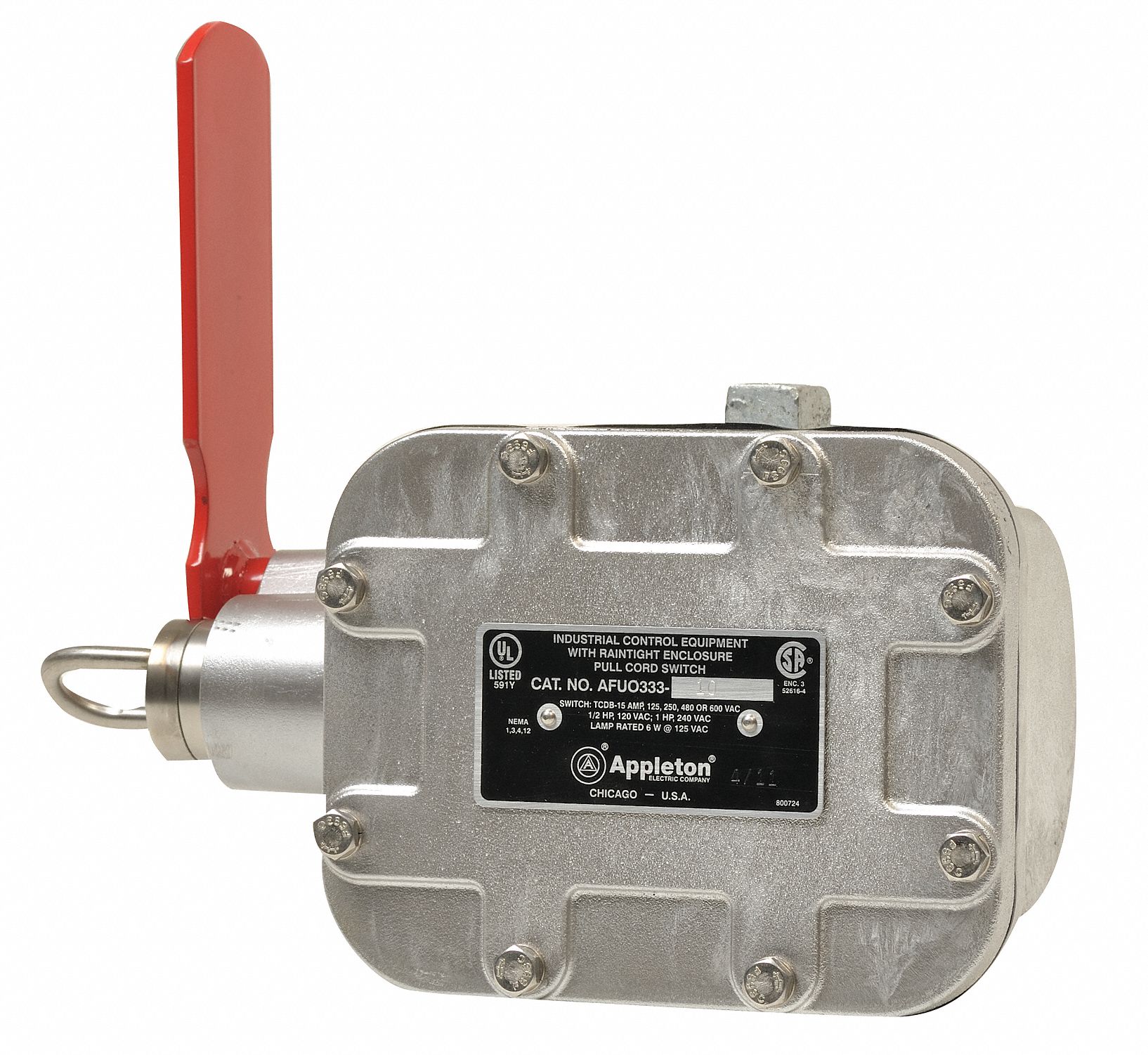

The APPLETON ELECTRIC AFUX Series Emergency Cable Pull Switch is a single-head cable-pull switch with a maintained action and actuator reset. This cast aluminum unit features a flag arm indicator, conduit wiring entry, and is rated for 1 HP at 240V AC with AC contact rating of 15 A at 240V and DC contact rating of 0.4 A at 230V. The model AFUX0333-60 includes a left pull cord with 25 lb pull force.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Left Pull Cord
Brand	APPLETON ELECTRIC
Reset	Actuator
Action	Maintained
Series	AFUX
IP Rating	Not Rated
Indicator	Flag Arm
Horsepower	1 HP @ 240V AC
Pull Force	25 lb
Wiring Entry	Conduit
Case Material	Cast Aluminum
AC Contact Rating	15 A @ 240 V
DC Contact Rating	0.4 A @ 230 V
Manufacturer Part Number	AFUX0333-60
