Appleton Electric 3G-OTH-30232 — Technical Specifications

Name: Appleton Electric 3G-OTH-30232 APPLETON ELECTRIC Emergency Cable Pull Switch: AFUX Series, Right Pull Cord, 15 lb Pull Force (MPN AFUX0333-05). Key specifications — Case Material: Cast Aluminum; Horsepower: 1 HP @ 240V AC; IP Rating: Not Rated; Reset: Actuator; Indicator: Flag Arm; Wiring Entry: Conduit; Manufacturer Part Number: AFUX0333-05; Action: Maintained.
Brand: Appleton Electric

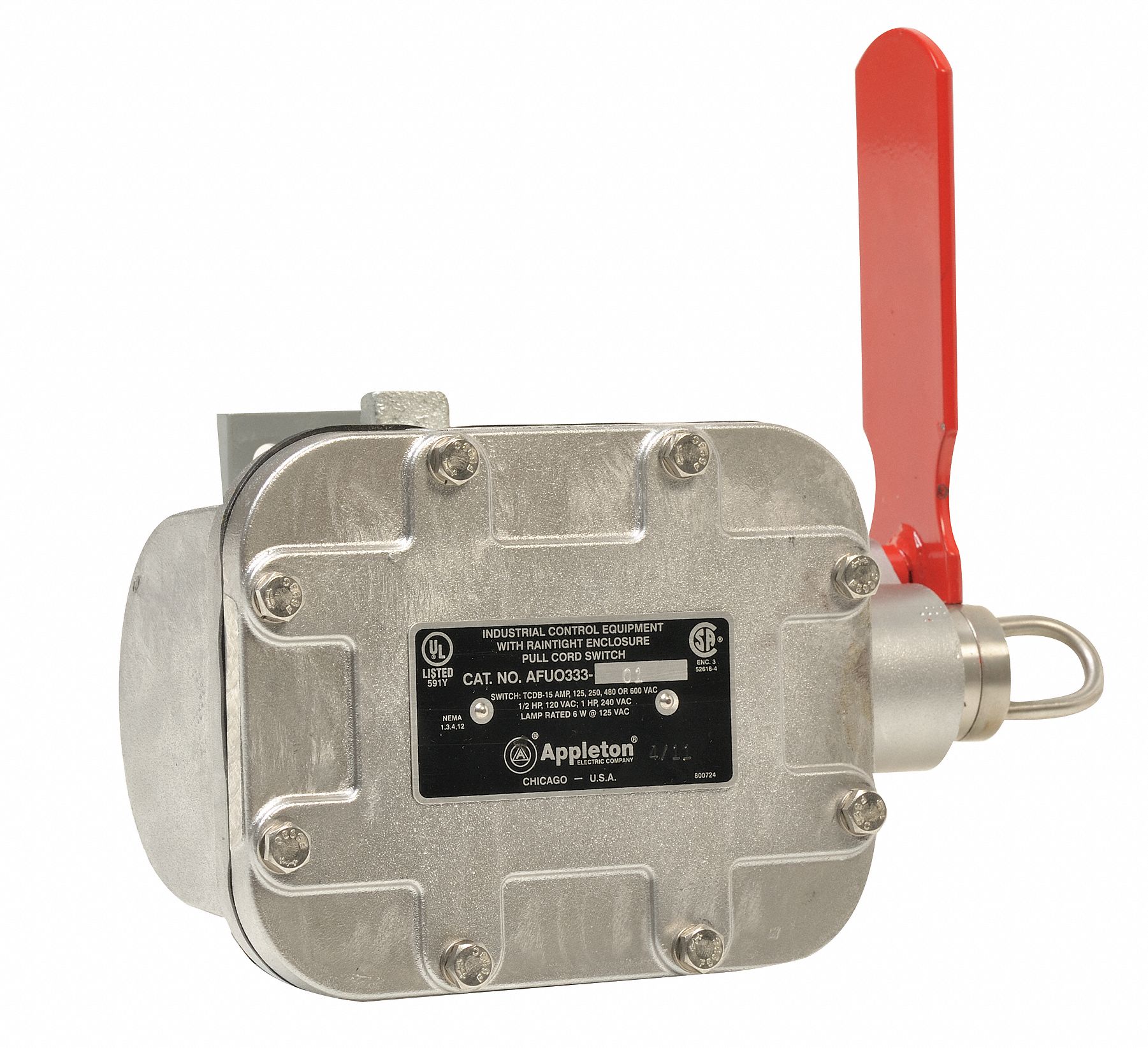

The APPLETON ELECTRIC AFUX Series Emergency Cable Pull Switch is a single-head cable-pull switch with a maintained action and actuator reset. This cast aluminum unit features a flag arm indicator, conduit wiring entry, and is rated for 1 HP at 240V AC, 15 A at 480V AC, and 0.8 A at 115V DC. The model AFUX0333-05 includes a right pull cord with a 15 lb pull force.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Right Pull Cord
Brand	APPLETON ELECTRIC
Reset	Actuator
Action	Maintained
Series	AFUX
IP Rating	Not Rated
Indicator	Flag Arm
Horsepower	1 HP @ 240V AC
Pull Force	15 lb
Wiring Entry	Conduit
Case Material	Cast Aluminum
AC Contact Rating	15 A @ 480 V
DC Contact Rating	0.8 A @ 115 V
Manufacturer Part Number	AFUX0333-05
