Appleton Electric 3G-OTH-30717 — Technical Specifications

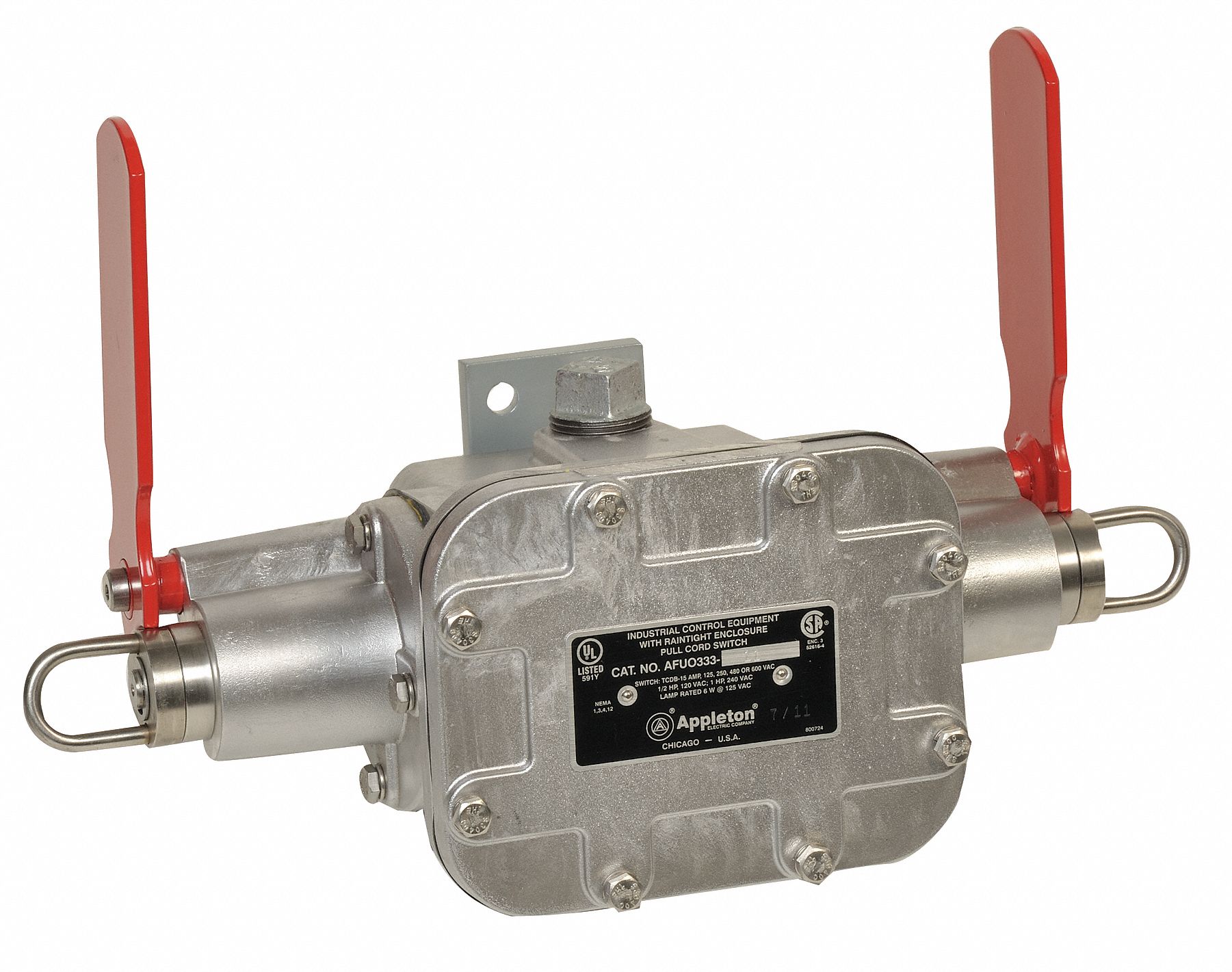

The APPLETON ELECTRIC AFUX Series Emergency Cable Pull Switch is a double-head cable-pull switch designed for emergency stop applications. This maintained-action switch features a cast aluminum case, left and right pull cord locations, and a flag arm indicator, with actuator reset. It is rated for 1 HP @ 125V AC, with AC contact rating of 20 A @ 480 V and DC contact rating of 0.25 A @ 250 V, and uses conduit wiring entry.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Left and Right Pull Cord, Double Ended |
| Brand | APPLETON ELECTRIC |
| Reset | Actuator |
| Action | Maintained |
| Series | AFUX |
| IP Rating | Not Rated |
| Indicator | Flag Arm |
| Horsepower | 1 HP @ 125V AC |
| Wiring Entry | Conduit |
| Case Material | Cast Aluminum |
| AC Contact Rating | 20 A @ 480 V |
| DC Contact Rating | 0.25 A @ 250 V |
| Pull Cord Location | Left and Right |
| Manufacturer Part Number | AFUX0333-88 |
