Appleton Electric 3G-OTH-05257 — Technical Specifications

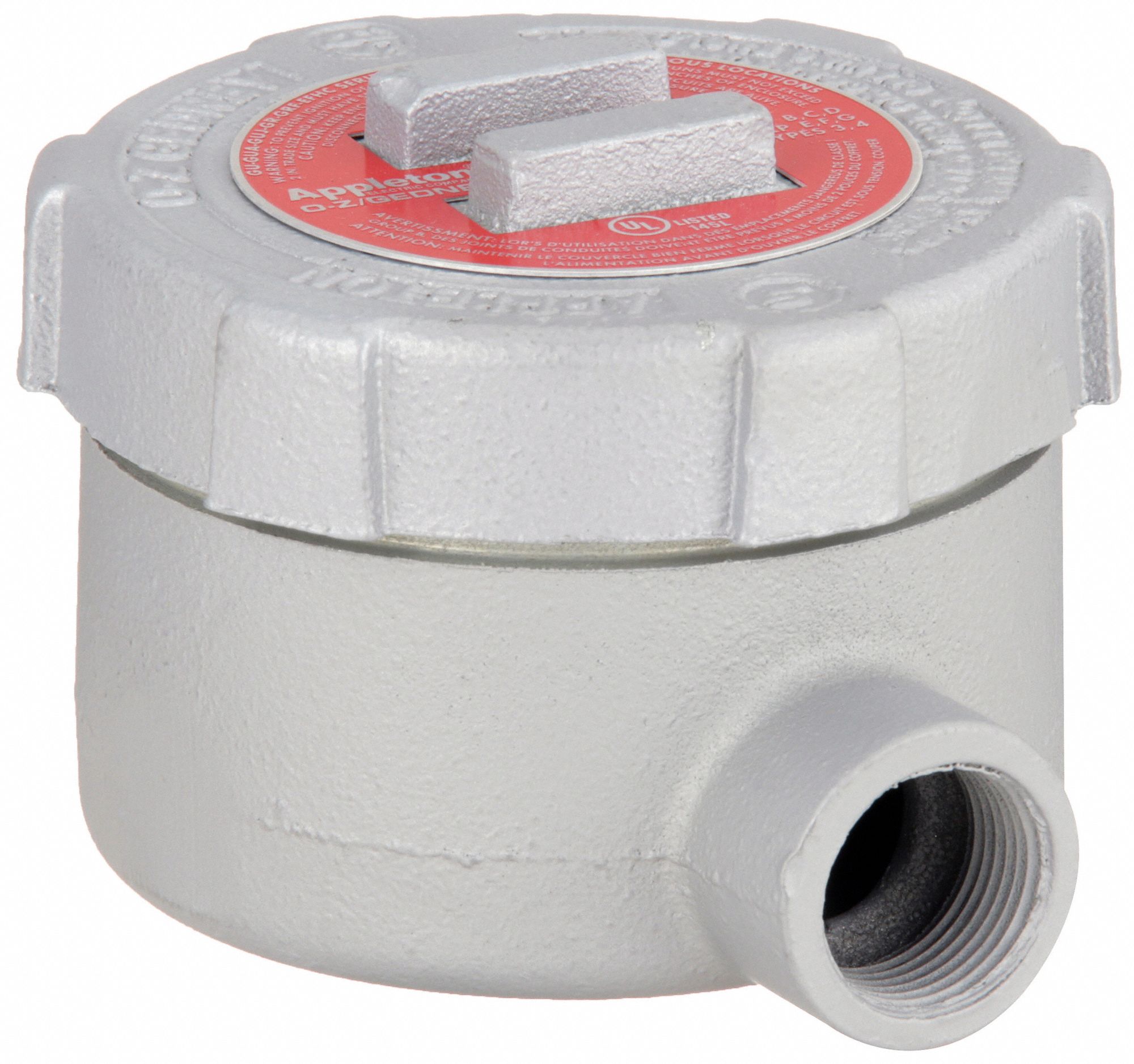

The APPLETON ELECTRIC Conduit Outlet Body is an iron LB round body 90° elbow type for use with threaded IMC. It features a triple coat epoxy coating, a 3/4 in trade size, and a 19 cu in body capacity. This female-threaded hub is UL Listed for hazardous locations including Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III. A cover and gasket are included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | GU, LB Body, 19 cu in Body Capacity |
| Brand | APPLETON ELECTRIC |
| Finish | Triple Coat Epoxy Coating |
| Series | For Standard Body |
| Material | Iron |
| Back Type | Round |
| Body Type | Conduit Outlet Body |
| Hub Style | Threaded |
| Standards | UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Body Style | LB |
| Trade Size | 3/4 in |
| For Use With | Threaded IMC |
| Thread Gender | Female |
| Cover Included | Yes |
| Connection Type | Threaded |
| Gasket Included | Yes |
| Hazardous Location | Yes |
| Manufacturer Part Number | GULB75 |
| Compatible Conduit Trade Size | 3/4 in |
