Approved Vendor 3G-OTH-33167 — Technical Specifications

Name: Approved Vendor 3G-OTH-33167 APPROVED VENDOR Toggle Switch: 2 Position, 2 Connections, SPST, Screw Terminals Connection (MPN 2VLN5). Key specifications — AC Contact Rating: 20 A @ 125 V; Switch Function Configuration: On/Off; Brand: APPROVED VENDOR; Series: HY29; Horsepower: 2 hp.
Brand: Approved Vendor

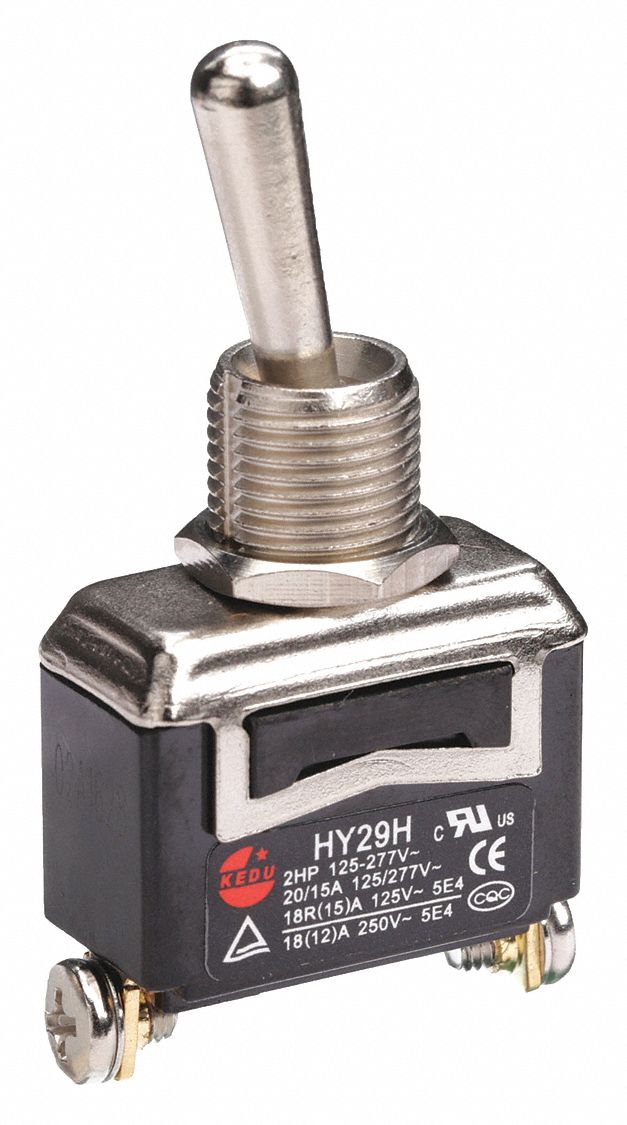

The APPROVED VENDOR Toggle Switch (SKU 2VLN5) is a panel-mount, SPST switch with a 2-position On/Off configuration. It features an AC contact rating of 20 A @ 125 V and a horsepower rating of 2 hp, with screw terminal connections. This switch is part of the HY29 series.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SPST, Screw Terminals Connection
Brand	APPROVED VENDOR
Series	HY29
Horsepower	2 hp
Connections	2
AC Contact Rating	20 A @ 125 V
Manufacturer Part Number	2VLN5
Switch Function Configuration	On/Off
