Approved Vendor 3G-OTH-450090 — Technical Specifications

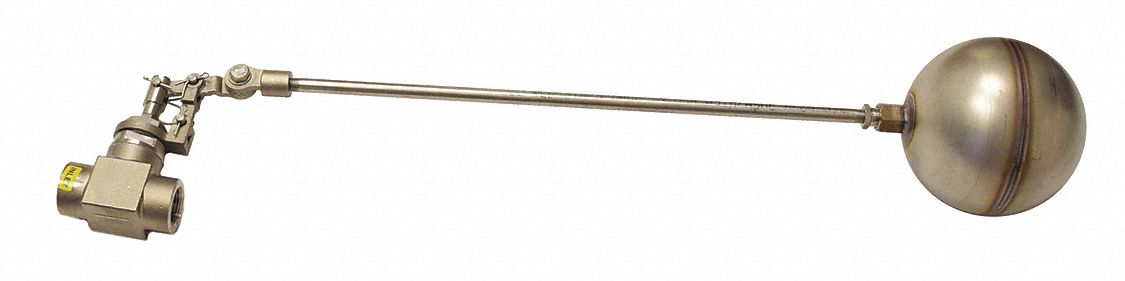

The APPROVED VENDOR Float Valve Assembly (MPN GHFSS100) is a general service float valve assembly for water media, featuring a straight valve body with 1" FNPT inlet and outlet connections. It includes a float and rod, mounts on horizontal piping, and has an adjustable arm. The assembly delivers a flow rate of 75 gpm at 60 psi.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Type | Straight Valve Body, Cylindrical |
| Brand | APPROVED VENDOR |
| Mounting | Horizontal Piping |
| Flow Rate | 75 gpm @ 60 psi |
| For Media | Water |
| Rod Thread | 1/4" NPT |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Straight |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | GHFSS100 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
