Approved Vendor 3G-OTH-527858 — Technical Specifications

Name: Approved Vendor 3G-OTH-527858 APPROVED VENDOR Thread Repair Kit: Tanged Tang Style, Free-Running, #10-32 Thread Size, Plain, Plain (MPN 3534-10GK). Key specifications — Material Grade/Class: 18-8; Thread Direction: Right Hand; Insert Types Included: Helical Inserts; STI Tap Size: #10-32; Compatible Material: Metal; System of Measurement: Inch; Brand: APPROVED VENDOR; Drill Bit Size: 5.1 mm.
Brand: Approved Vendor

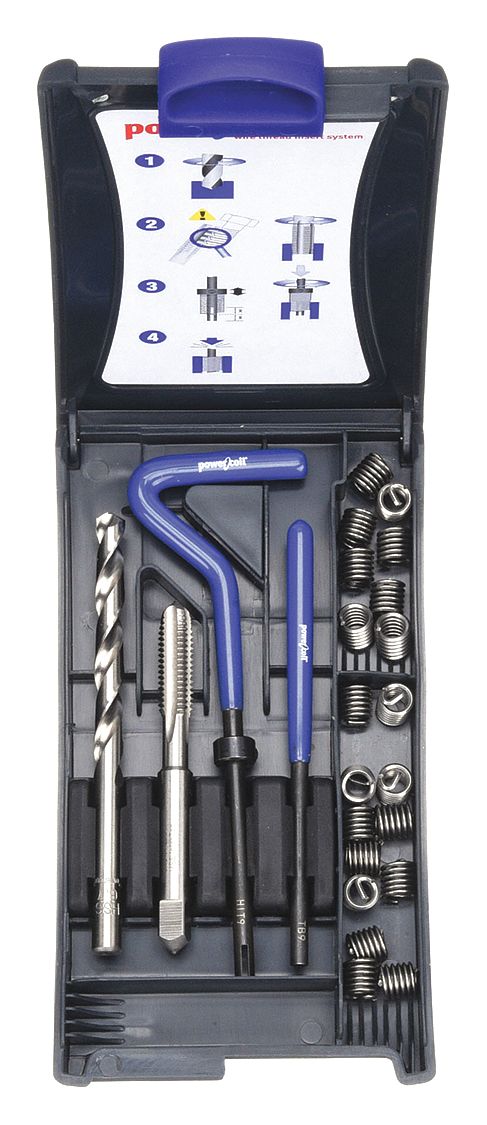

The APPROVED VENDOR Thread Repair Kit (MPN 3534-10GK) is a tanged tang-style insert and tool kit for free-running #10-32 inch fine threads. It includes helical inserts made from 18-8 stainless steel, a #10-32 STI tap, and a 5.1 mm drill bit for right-hand thread repair in metal. This kit provides the components needed to restore damaged threads in compatible metal substrates.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Free-Running, #10-32 Thread Size, Plain, Plain
Brand	APPROVED VENDOR
Finish Type	Plain
Thread Type	Fine
STI Tap Size	#10-32
Drill Bit Size	5.1 mm
Thread Direction	Right Hand
Compatible Material	Metal
Material Grade/Class	18-8
Insert Types Included	Helical Inserts
System Of Measurement	Inch
Manufacturer Part Number	3534-10GK
