Approved Vendor 3G-OTH-528865 — Technical Specifications

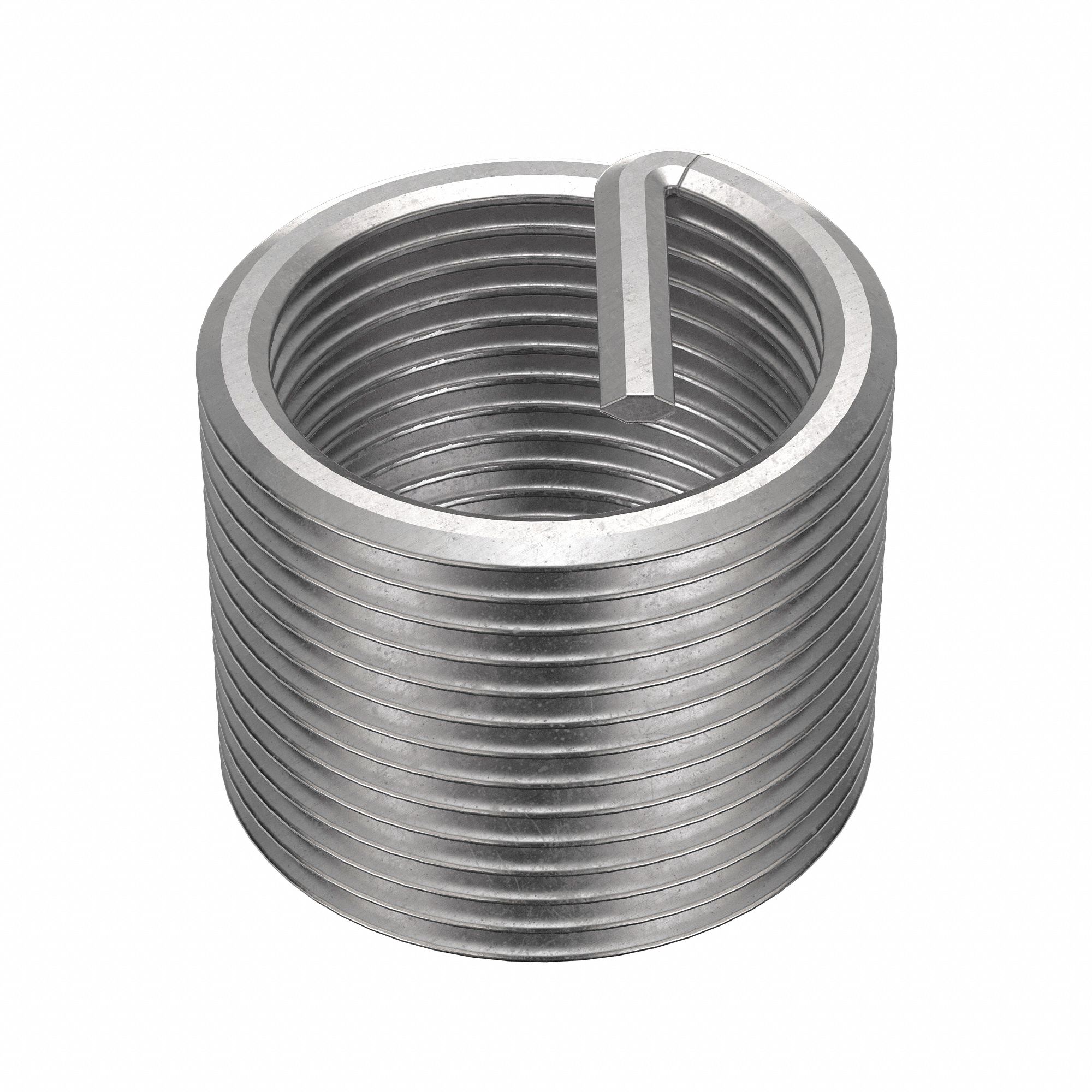

The APPROVED VENDOR Helical Insert is a screw-locking, tanged tang style insert with a 1 1/4"-12 fine thread size and plain finish. It is made from 18-8 material with a tensile strength of 200,000 psi, compatible with metal, and uses a right-hand thread direction. This inch-system insert requires an STI tap size of 1-1/4"-12.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw-Locking, Plain |
| Brand | APPROVED VENDOR |
| Finish Type | Plain |
| Thread Size | 1 1/4"-12 |
| Thread Type | Fine |
| STI Tap Size | 1-1/4"-12 |
| Tensile Strength | 200,000 psi |
| Thread Direction | Right Hand |
| Compatible Material | Metal |
| Material Grade/Class | 18-8 |
| System Of Measurement | Inch |
| Manufacturer Part Number | 3534-1.1/4X1.0DSL |
