Approved Vendor 3G-OTH-528820 — Technical Specifications

Name: Approved Vendor 3G-OTH-528820 APPROVED VENDOR Helical Insert: Tanged Tang Style, Screw-Locking, M16-2.00 Thread Size, Plain, Plain (MPN 3520-16.00X1.0DSL). Key specifications — Material Grade/Class: 18-8; Thread Direction: Right Hand; STI Tap Size: M16-2.00; Compatible Material: Metal; System of Measurement: Metric; Brand: APPROVED VENDOR; Drill Bit Size: 14 mm; Tensile Strength: 200,000 psi.
Brand: Approved Vendor

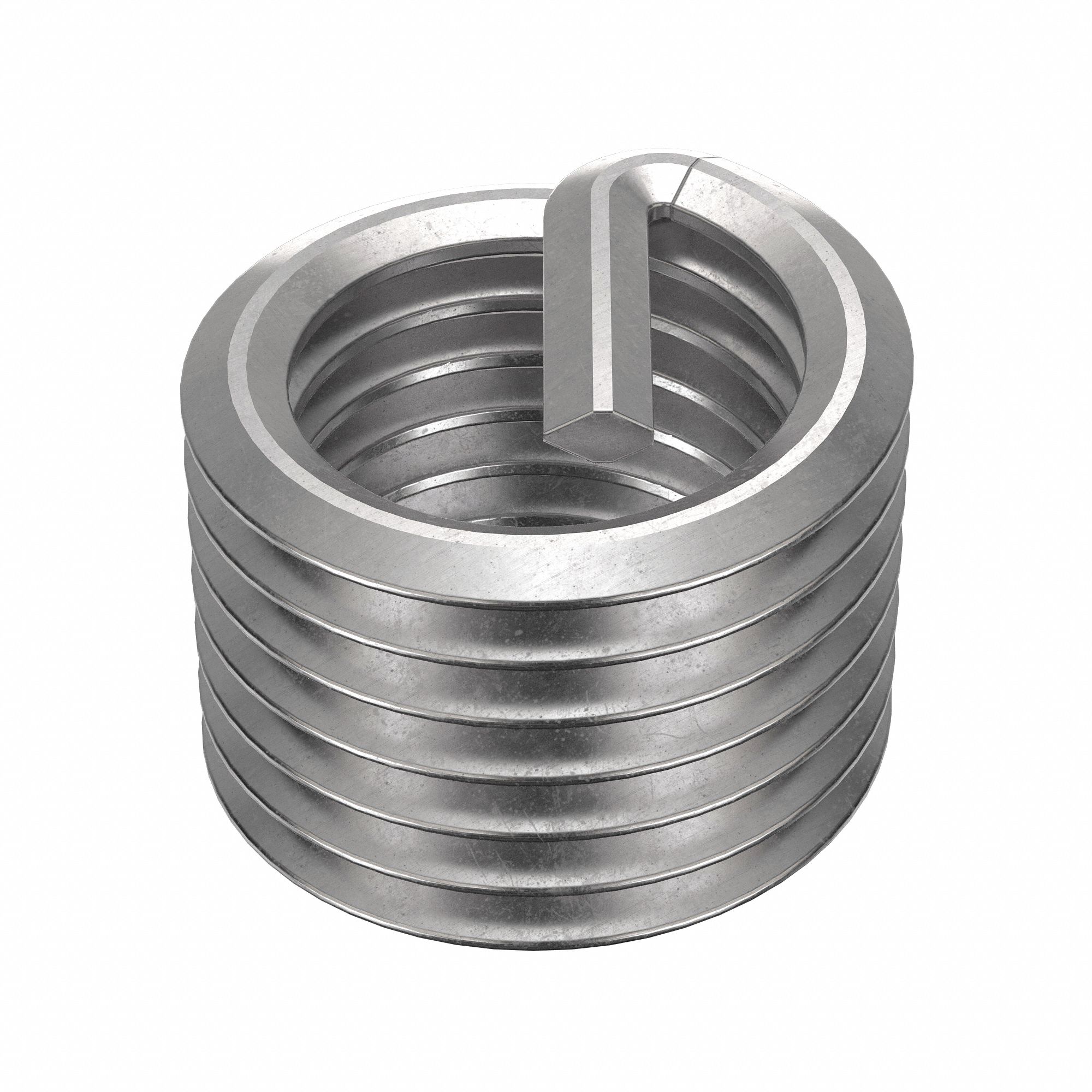

The APPROVED VENDOR Helical Insert is a screw-locking tanged tang style insert with M16-2.00 thread size, plain finish, and 18-8 material grade. It features a 200,000 psi tensile strength, right-hand thread direction, and requires a 14 mm drill bit and M16-2.00 STI tap for installation in metal.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Screw-Locking, M16-2.00 Thread Size, Plain, Plain
Brand	APPROVED VENDOR
Finish Type	Plain
Thread Type	Coarse
STI Tap Size	M16-2.00
Drill Bit Size	14 mm
Tensile Strength	200,000 psi
Thread Direction	Right Hand
Compatible Material	Metal
Material Grade/Class	18-8
System Of Measurement	Metric
Manufacturer Part Number	3520-16.00X1.0DSL
