Approved Vendor 3G-OTH-535690 — Technical Specifications

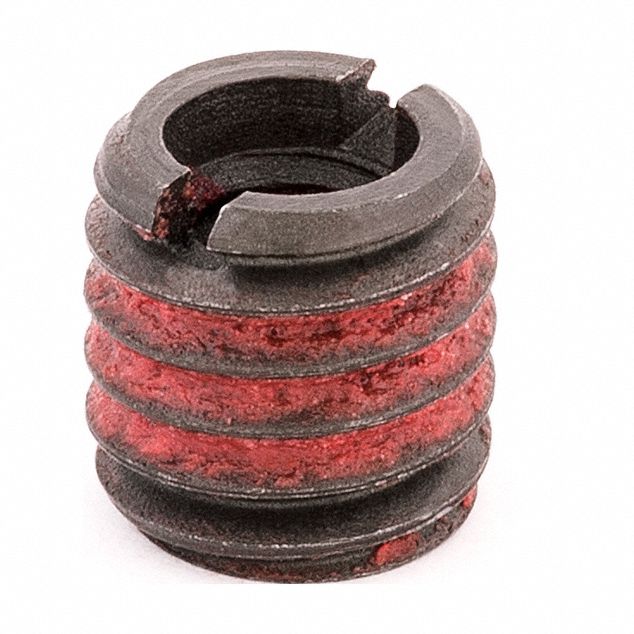

APPROVED VENDOR Self Locking Thread Insert: Heavy Wall, a screw-locking heavy wall self-locking insert with #10-24 internal thread size, 3/8 in insert diameter, and coarse thread type. Supplied in a 10-pack, it requires a 5/16 drill bit and a 3/8"-16 compatible tap, with external thread fit 2A and internal thread fit 2B.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | #10-24 Int Thrd Sz, 10 PK |
| Wall Type | Heavy Wall |
| Insert Dia | 3/8 in |
| Thread Type | Coarse |
| Drill Bit Size | 5/16 |
| Compatible Tap Size | 3/8"-16 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | 329-3IC-PK10 |
