Approved Vendor 3G-OTH-534041 — Technical Specifications

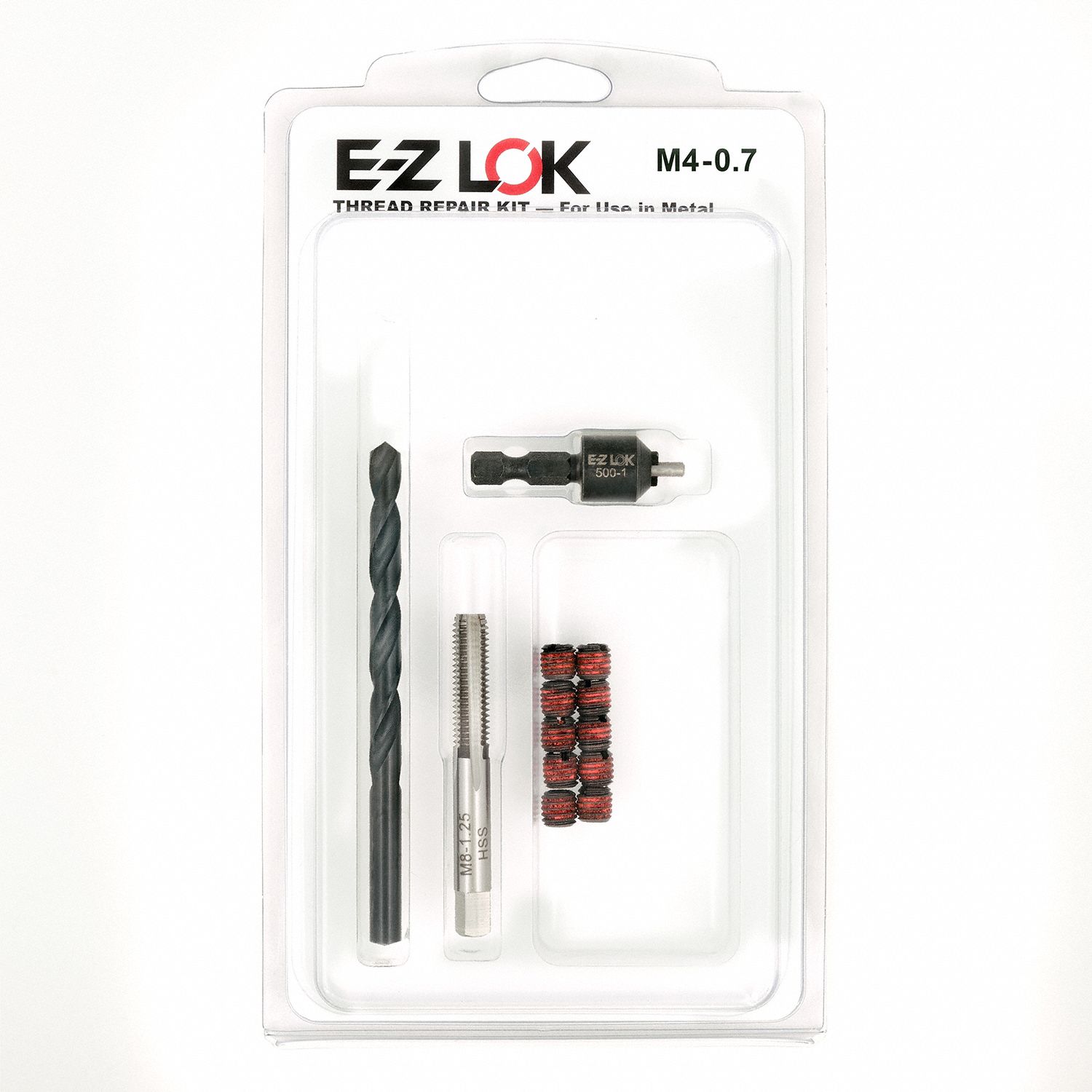

The APPROVED VENDOR Self Locking Thread Insert is a standard-wall, coarse-thread metric insert with M4-0.70 internal thread size and M8-1.25 external thread size. It requires a 6.9mm drill bit and M8-1.25 tap, with internal thread fit 6H and external thread fit 6G (MPN EZ-450-4).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M4-0.70 Int Thrd Sz, M8-1.25 Ext Thrd Sz |
| Wall Type | Standard Wall |
| Thread Type | Coarse |
| Drill Bit Size | 6.9mm |
| Compatible Tap Size | M8-1.25 |
| External Thread Fit | 6G |
| Internal Thread Fit | 6H |
| System Of Measurement | Metric |
| Manufacturer Part Number | EZ-450-4 |
