Approved Vendor 3G-OTH-534186 — Technical Specifications

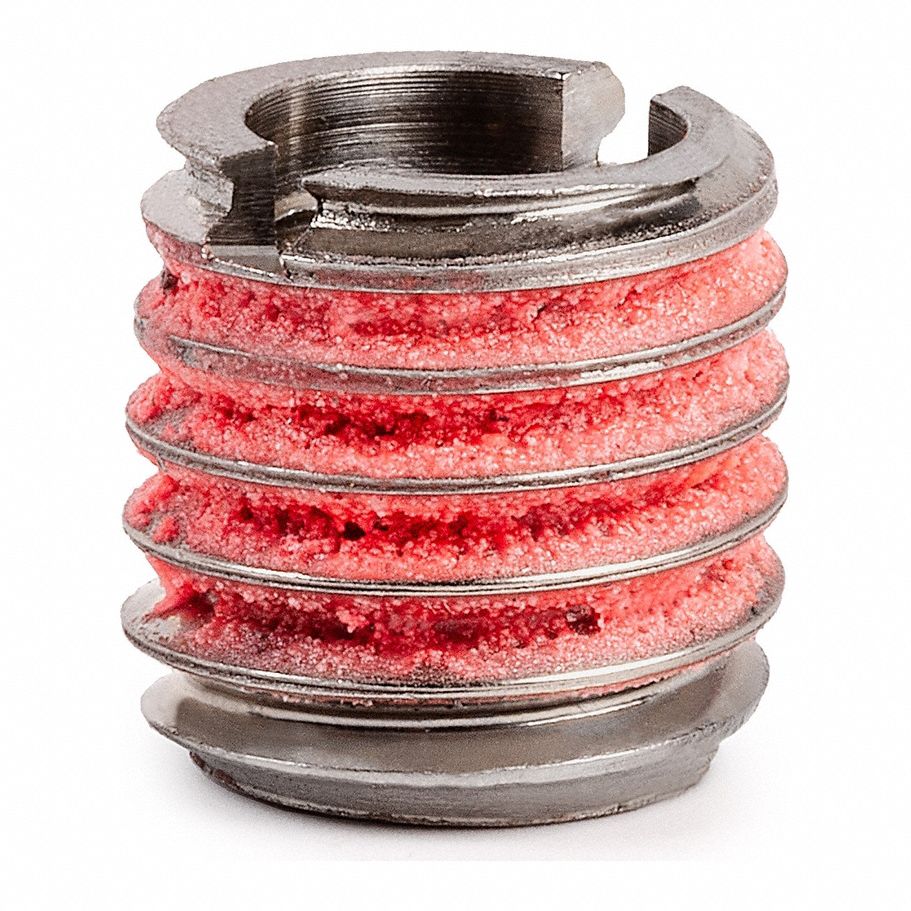

The APPROVED VENDOR Self Locking Thread Insert is a standard-wall, heavy-wall self-locking insert with a #10-24 internal thread size and a 3/8"-16 external thread size, plain finish. It features coarse threads, a 5/16 drill bit size, and is compatible with a 3/8"-16 tap, with external thread fit 2A and internal thread fit 2B in the inch system (MPN 316-3).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | #10-24 Int Thrd Sz, Plain |
| Wall Type | Standard Wall |
| Ext Thrd Sz | 3/8"-16 |
| Thread Type | Coarse |
| Drill Bit Size | 5/16 |
| Compatible Tap Size | 3/8"-16 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | 316-3 |
