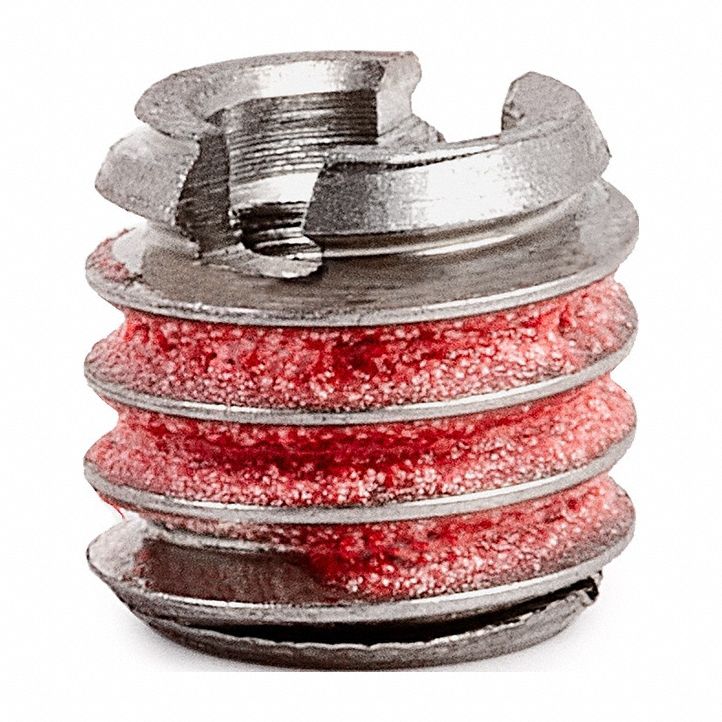

Approved Vendor 3G-OTH-534146 — Technical Specifications
The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall insert with M3-0.50 internal thread size and M6-1.00 external thread size (MPN 416-3). It features coarse thread type, metric system of measurement, 5.1mm drill bit size, compatible tap size M6-1.00, external thread fit 6G, and internal thread fit 6H.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M3-0.50 Int Thrd Sz, M6-1.00 Ext Thrd Sz |
| Wall Type | Standard Wall |
| Thread Type | Coarse |
| Drill Bit Size | 5.1mm |
| Compatible Tap Size | M6-1.00 |
| External Thread Fit | 6G |
| Internal Thread Fit | 6H |
| System Of Measurement | Metric |
| Manufacturer Part Number | 416-3 |
