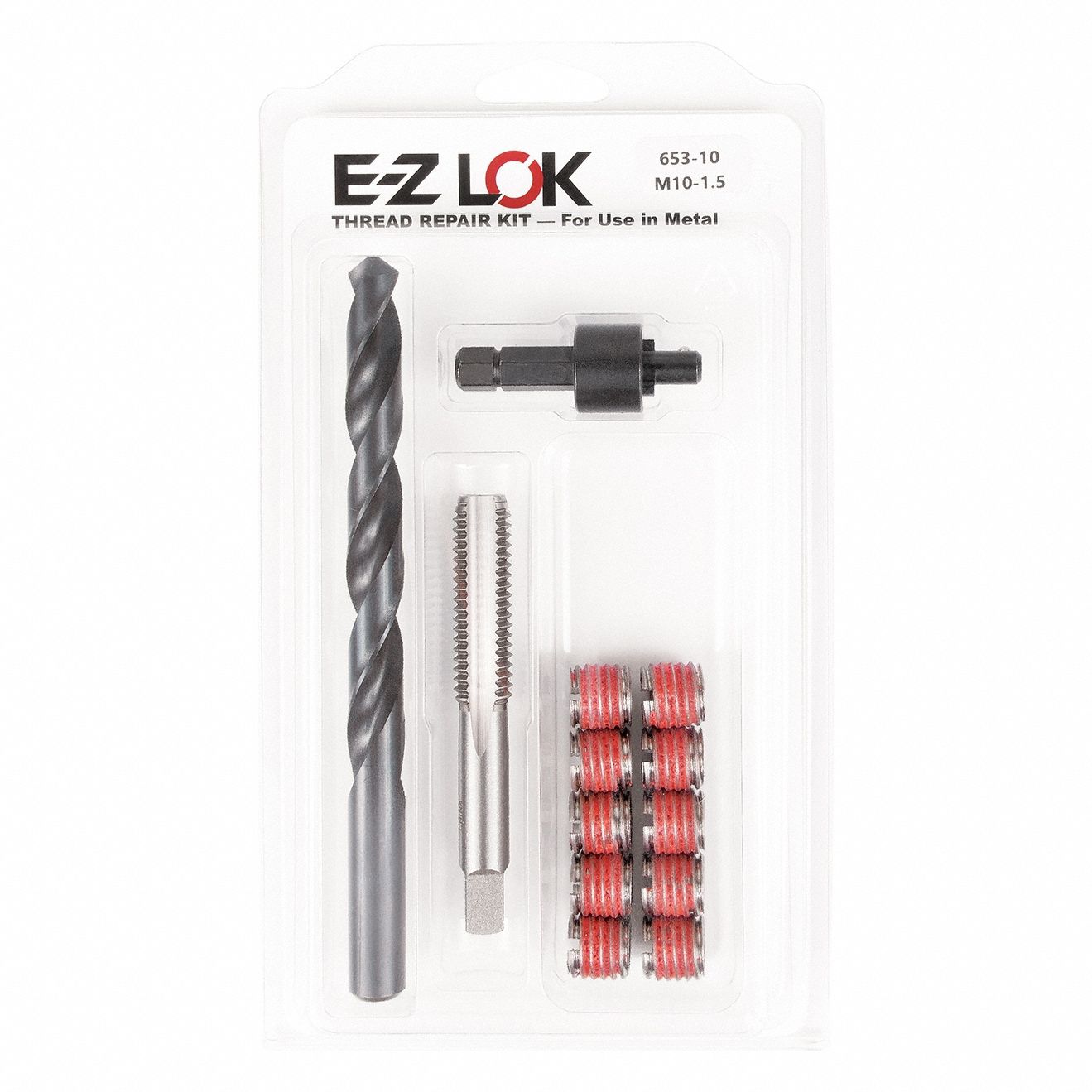

Approved Vendor 3G-OTH-534030 — Technical Specifications
The APPROVED VENDOR Self Locking Thread Insert is a standard-wall, coarse-thread insert with M10-1.50 internal thread size and 9/16"-12 external thread size (MPN EZ-653-10). It requires a 31/64 drill bit and a 9/16"-12 compatible tap, with internal thread fit 6H and external thread fit 2A in an inch/metric system.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M10-1.50 Int Thrd Sz |
| Wall Type | Standard Wall |
| Ext Thrd Sz | 9/16"-12 |
| Thread Type | Coarse |
| Drill Bit Size | 31/64 |
| Compatible Tap Size | 9/16"-12 |
| External Thread Fit | 2A |
| Internal Thread Fit | 6H |
| System Of Measurement | Inch/Metric |
| Manufacturer Part Number | EZ-653-10 |
