Approved Vendor 3G-OTH-531731 — Technical Specifications

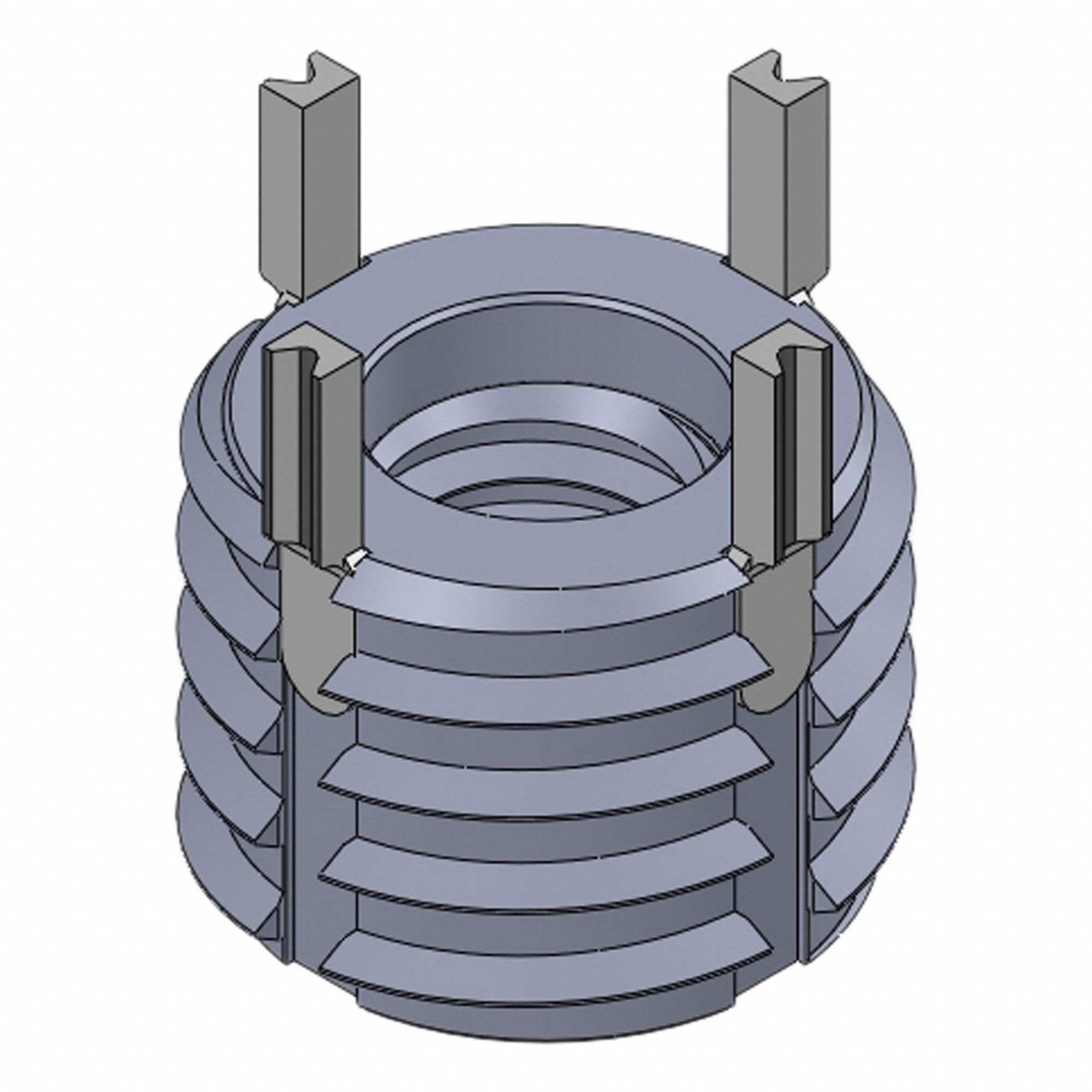

The APPROVED VENDOR Key Locking Insert is a heavy-wall, mil-spec insert with 4 keys, a 3/4"-16 internal thread size, and a 1 1/8"-12 external thread size. Supplied as a plain, 10-pack (MPN 217-076509), it meets MS51832-203 standards, is made from 18-8 material, and requires a 1-3/64 in drill bit with a 1-1/8"-12 compatible tap size.
Technical Specifications
| Parameter | Value |
|---|---|
| Keys | 4 |
| Type | Plain, 10 PK |
| Brand | APPROVED VENDOR |
| Wall Type | Heavy Wall |
| Ext Thrd Sz | 1 1/8"-12 |
| Finish Type | Plain |
| Int Thrd Sz | 3/4"-16 |
| Thread Type | Coarse |
| Drill Bit Size | 1-3/64 in |
| Industry Standards | MS51832-203 |
| Compatible Tap Size | 1-1/8"-12 |
| External Thread Fit | 2A |
| Internal Thread Fit | 3B |
| Material Grade/Class | 18-8 |
| System Of Measurement | Inch |
| Manufacturer Part Number | 217-076509 |
