Approved Vendor 3G-OTH-122941 — Technical Specifications

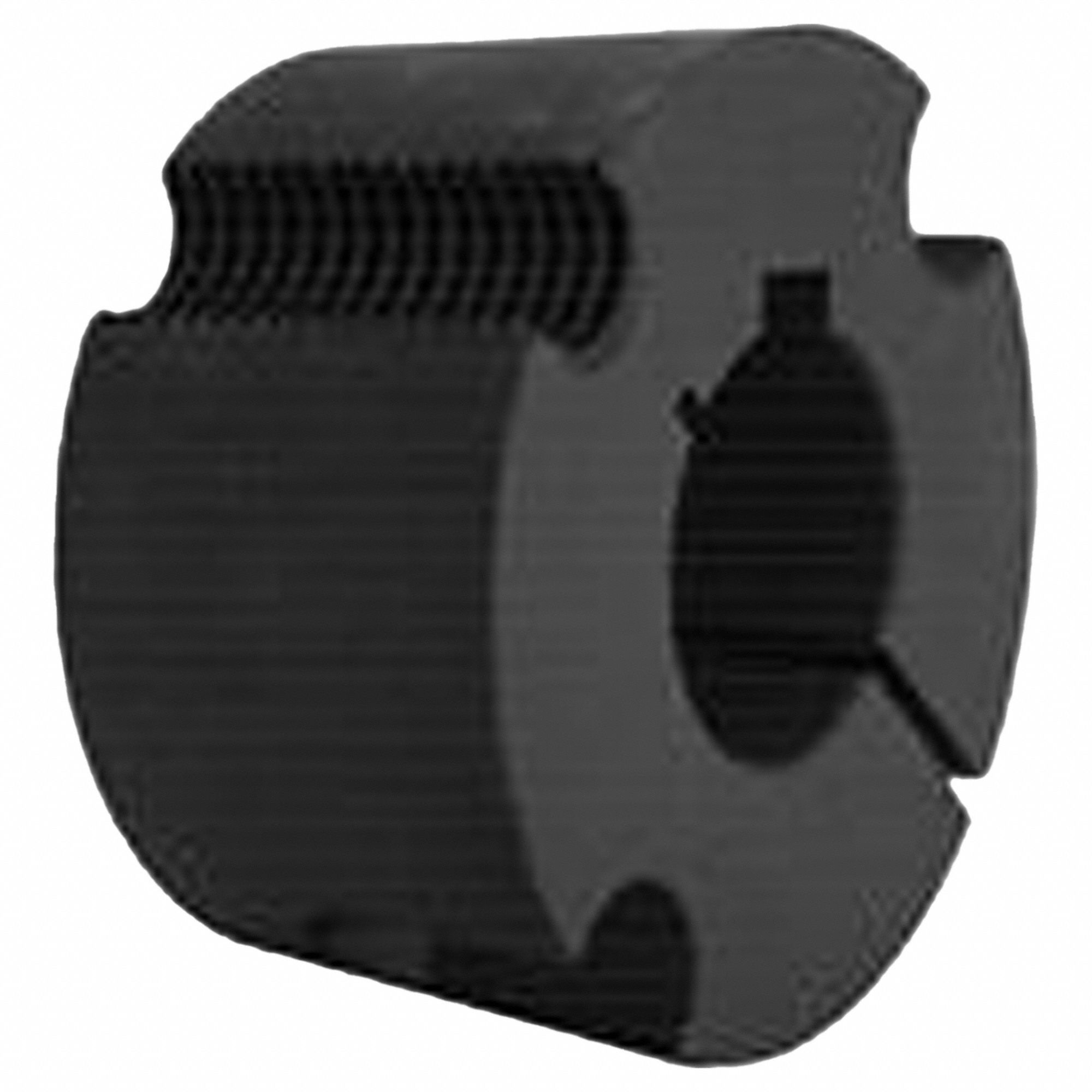

The APPROVED VENDOR Taper Lock Bushing, model 1210, is a taper lock bushing with an 8° taper. It features a 22 mm bore diameter, a 1 in overall length, and a 1.875 in overall diameter. This component is identified by manufacturer part number 1210X22MM.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 8° |
| Brand | APPROVED VENDOR |
| Taper | 8° |
| Bore Dia | 22 mm |
| Overall Lg | 1 in |
| Overall Dia | 1.875 in |
| Manufacturer Part Number | 1210X22MM |
