Approved Vendor 3G-OTH-116976 — Technical Specifications

Name: Approved Vendor 3G-OTH-116976 APPROVED VENDOR Weld-On Hub: Split Taper, For R1 Bushing, 0.71 in Lg Less Flange, 2 in Overall Lg (MPN HR1). Key specifications — Bolt Size: 3/8"-16; Material: Carbon Steel; Brand: APPROVED VENDOR; Taper: 3/4 in Per ft On Diameter.
Brand: Approved Vendor

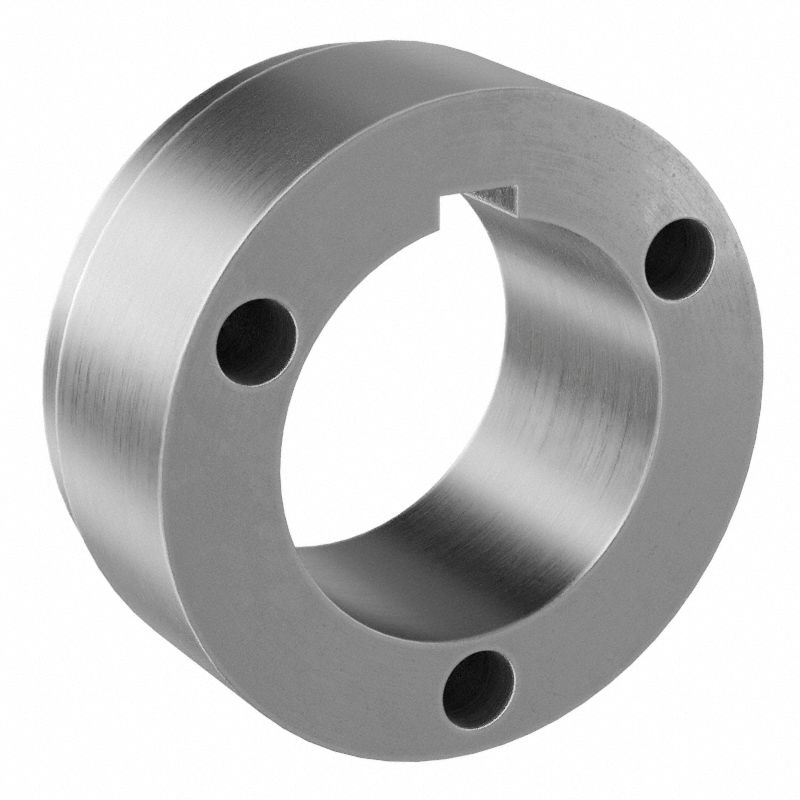

The APPROVED VENDOR Weld-On Hub: Split Taper is a split taper weld-on hub designed for use with R1 bushings. It is constructed from carbon steel and features a taper of 3/4 in per ft on diameter. The hub has a bolt size of 3/8"-16, a length less flange of 0.71 in, and an overall length of 2 in (MPN HR1).

View Product & Quote

Technical Specifications

Parameter	Value
Type	For R1 Bushing
Brand	APPROVED VENDOR
Taper	3/4 in Per ft On Diameter
Material	Carbon Steel
Bolt Size	3/8"-16
Overall Lg	2 in
Lg Less Flange	0.71 in
Manufacturer Part Number	HR1
