Approved Vendor 3G-OTH-112485 — Technical Specifications

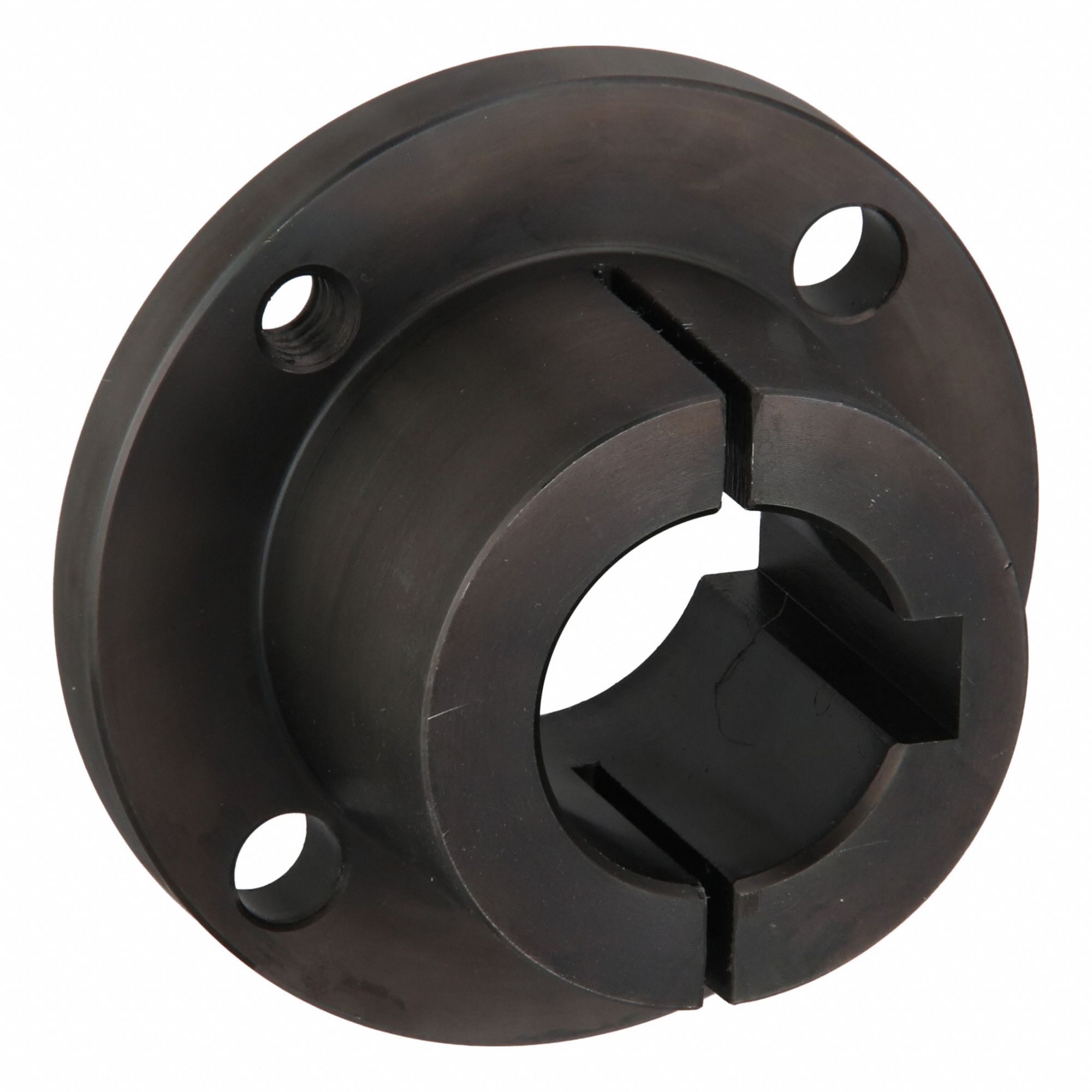

The APPROVED VENDOR Split Taper Bushing: H is a split taper bushing with a 3/4 in per ft taper. It features a 24 mm bore diameter, a 2 in bolt circle diameter, and a 2.5 in overall diameter (MPN Hx24mm).
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | APPROVED VENDOR |
| Taper | 3/4 in Per ft |
| Bore Dia | 24 mm |
| Overall Dia | 2.5 in |
| Bolt Circle Dia | 2 in |
| Manufacturer Part Number | Hx24mm |
