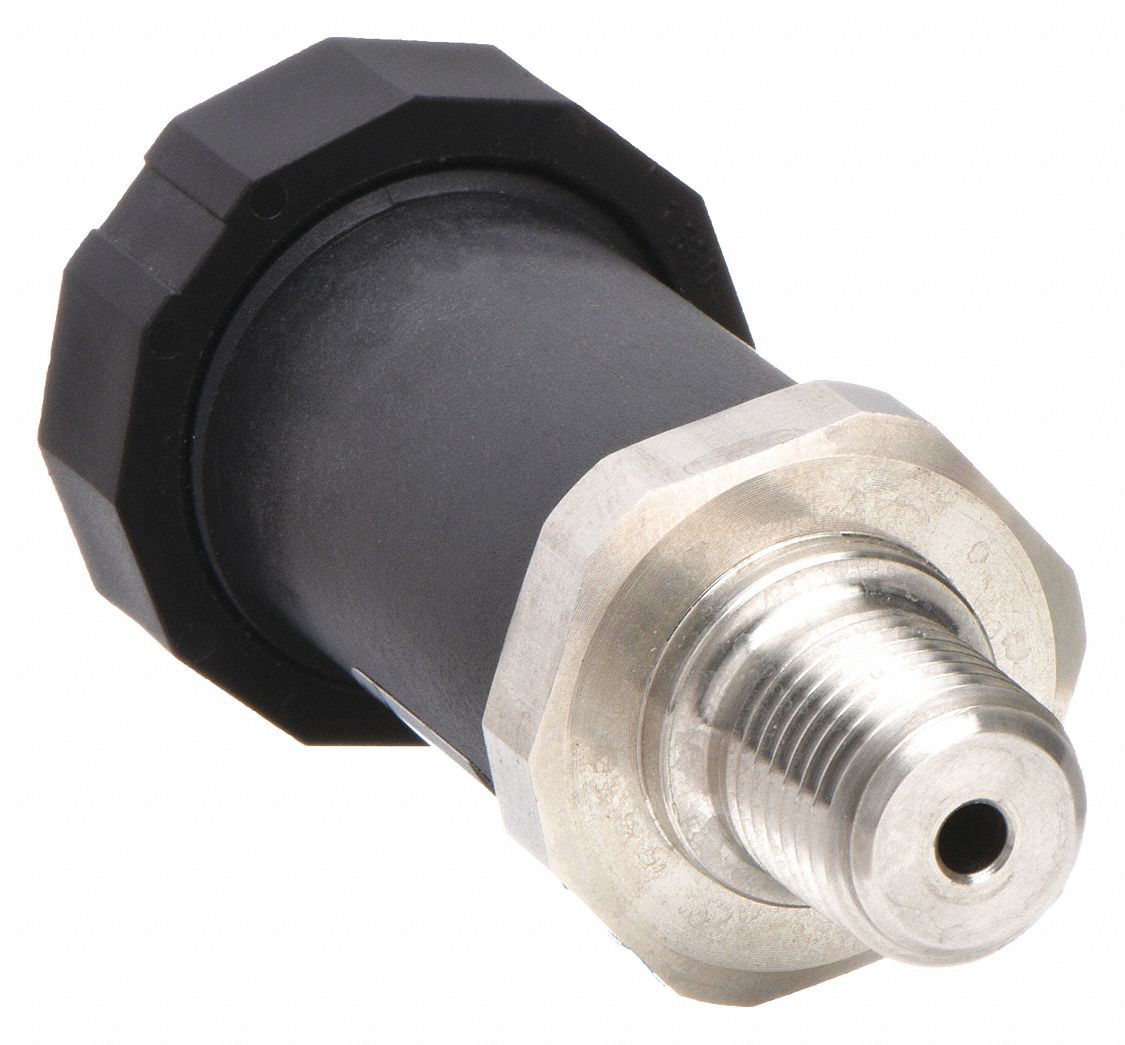

Ashcroft 3G-OTH-176656 — Technical Specifications
The ASHCROFT T2 Series Pressure Transmitter (SKU 2AGD1) is a pressure transmitter with a 4-Pin M12 Connector, offering a 0 psi to 5,000 psi range and a 4 to 20mA DC output. It features ±0.25% accuracy, an IP66 and NEMA 4X rating, a nylon housing, and a 1/4 in Male NPT process connection. Overpressure is 1.2x Range, burst pressure is 5x Range, and no NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | T2 |
| Accuracy | ±0.25% |
| Male NPT | 1/4 in |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.2x Range |
| M12 Connector | 4-Pin |
| Burst Pressure | 5x Range |
| Housing Material | Nylon |
| Process Connection Type | NPT |
| Manufacturer Part Number | T27M0242EW5000#GXCY |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
