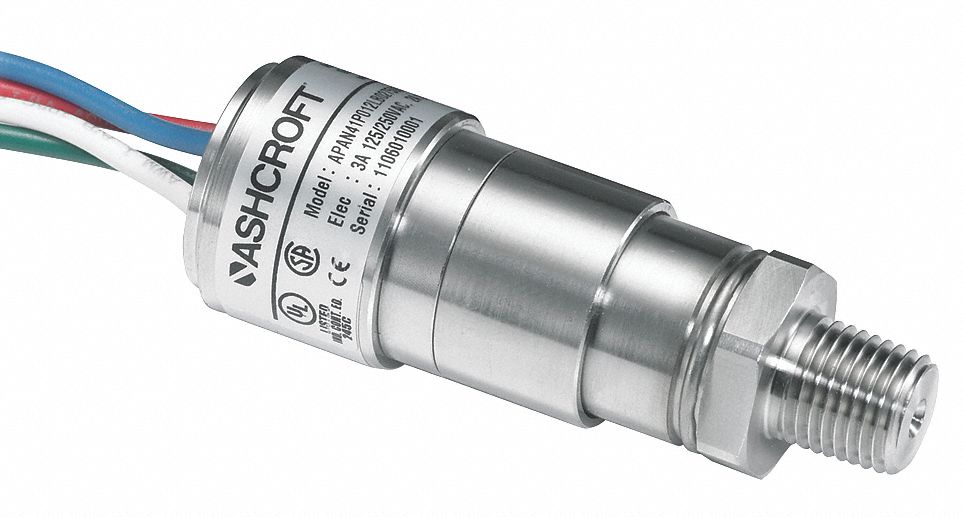

Ashcroft 3G-OTH-36329 — Technical Specifications
The ASHCROFT Pressure Switch: Piston Actuator is a diaphragm and piston miniature pressure switch with a 1NO/1NC contact configuration. It features a pressure range of 750 psi to 7,500 psi, a 1/4" MNPT pressure connection, and 3-18 AWG PVC insulated 12" wire leads for electrical connection.
Technical Specifications
| Parameter | Value |
|---|---|
| MNPT | 1/4" |
| Type | 1NO/1NC, 750 psi – 7,500 psi |
| Brand | ASHCROFT |
| Manufacturer Part Number | APAN41H012LB027500#-NSR |
| Pressure Connection Type | 1/4" MNPT |
| Electrical Connection Type | 3-18 AWG PVC Insulated 12" Wire Leads |
