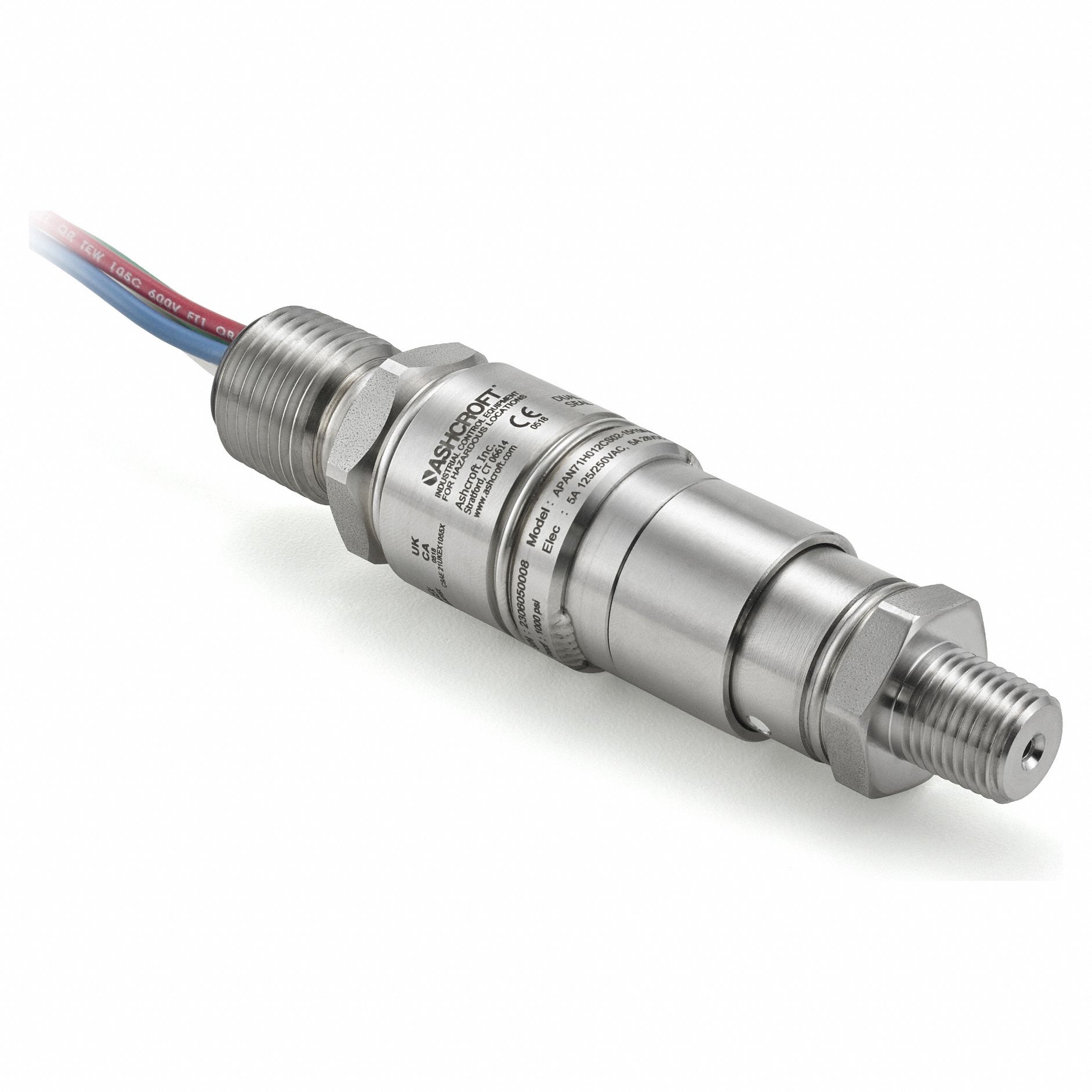

Ashcroft 3G-OTH-35466 — Technical Specifications
The ASHCROFT Pressure Switch: Piston Actuator is a hazardous-location miniature pressure switch with a 1NO/1NC contact configuration and a pressure range of 200 psi to 2,000 psi. It features a 1/4" MNPT pressure connection and a 1/2" MNPT conduit connector with 18 AWG 12" wire leads for electrical connection.
Technical Specifications
| Parameter | Value |
|---|---|
| MNPT | 1/4" |
| Type | 1NO/1NC, 200 psi – 2,000 psi |
| Brand | ASHCROFT |
| Manufacturer Part Number | APAN71H012CB022000#-NSR |
| Pressure Connection Type | 1/4" MNPT |
| Electrical Connection Type | 1/2" MNPT Conduit Connector with 18 AWG 12" Wire Leads |
