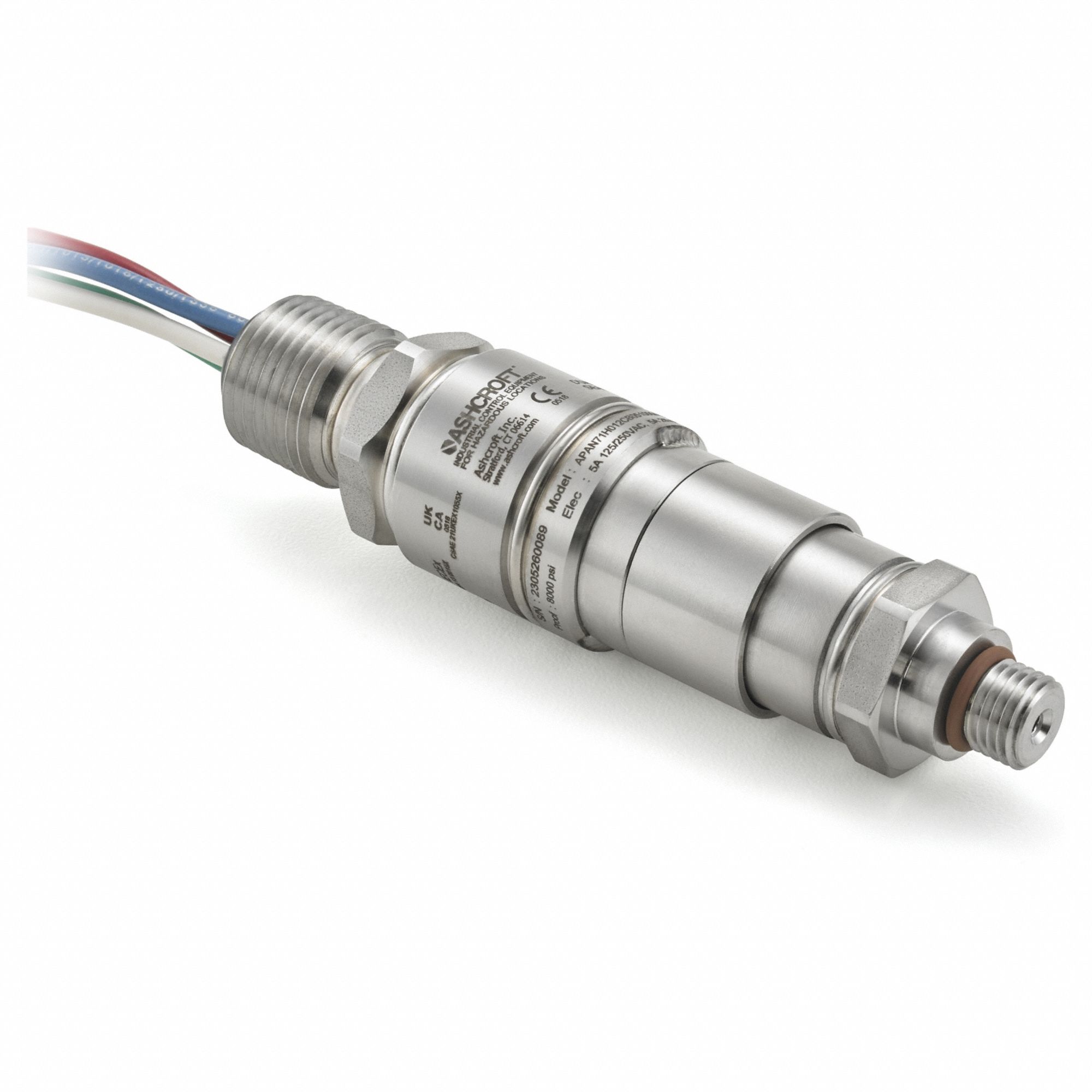

Ashcroft 3G-OTH-35485 — Technical Specifications
The ASHCROFT Pressure Switch: Piston Actuator is a hazardous-location miniature pressure switch with a 1NO/1NC contact configuration and a pressure range of 100 psi to 1,000 psi. It features a 7/16-20" SAE Male pressure connection and a 1/2" MNPT Conduit Connector with 18 AWG 12" Wire Leads for electrical connection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, 100 psi – 1,000 psi |
| Brand | ASHCROFT |
| SAE Male | 7/16-20" |
| Manufacturer Part Number | APAN71H012CB051000#-NSR |
| Pressure Connection Type | 7/16-20" SAE Male |
| Electrical Connection Type | 1/2" MNPT Conduit Connector with 18 AWG 12" Wire Leads |
