Ashcroft 3G-OTH-176517 — Technical Specifications

Name: Ashcroft 3G-OTH-176517 Pressure Transmitter: 0 psi to 1,000 psi, 4 to 20mA DC, Cable & Wire Leads, 7/16 in Male SAE (MPN G17MEK42F21000#). Key specifications — Accuracy: ±0.5%; NEMA Rating: 4X; Burst Pressure: 5x Range; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP67; Housing Material: Nylon; Output: 4 to 20mA DC; Overpressure: 2x Range.
Brand: Ashcroft

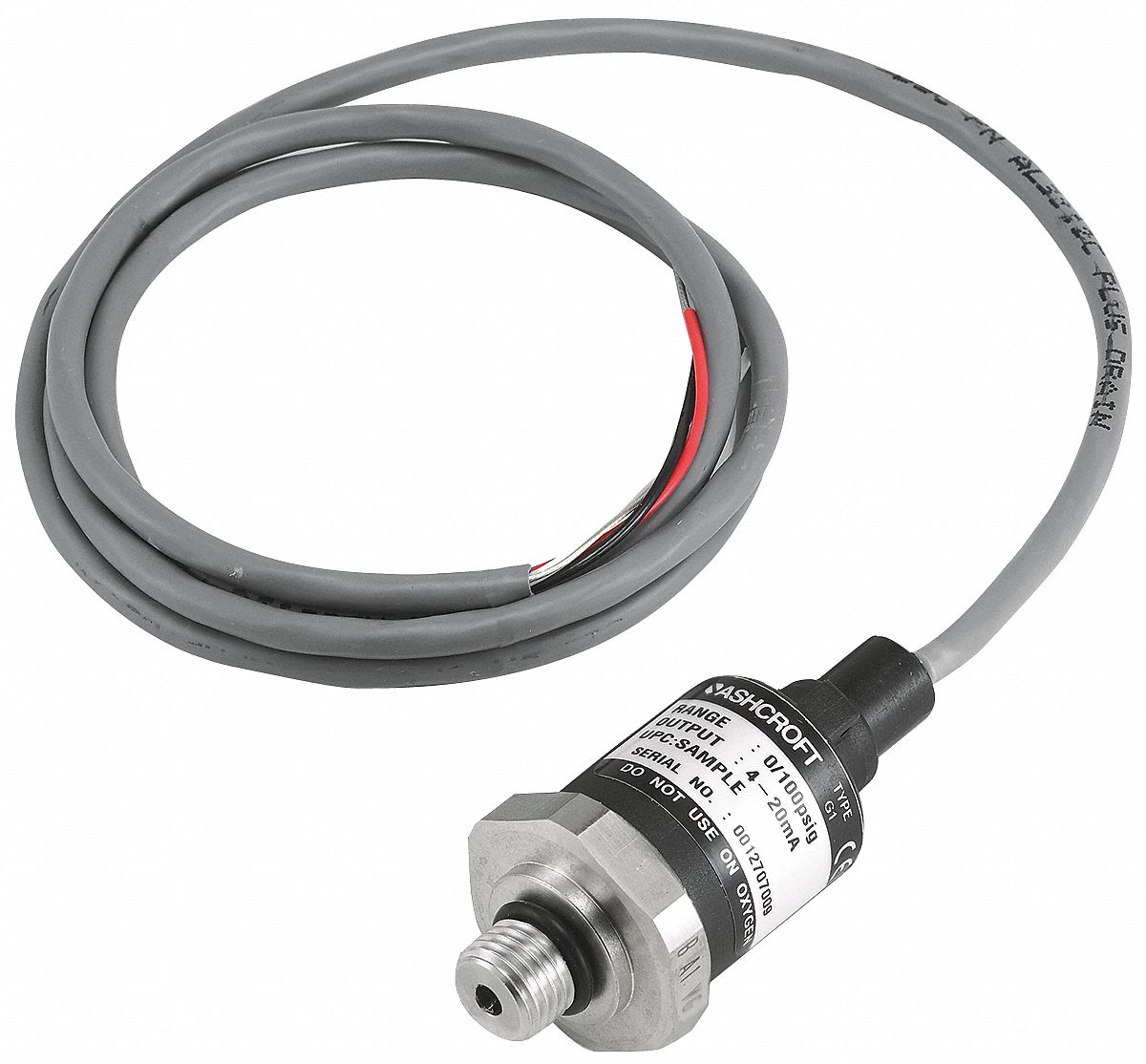

The ASHCROFT G2 Series Pressure Transmitter (0 psi to 1,000 psi) is a pressure transmitter with cable and wire leads, featuring a 4 to 20mA DC output and ±0.5% accuracy. It has an IP67 and NEMA 4X rating, a nylon housing, and a 7/16 in male SAE process connection. Overpressure capacity is 2x range, and burst pressure is 5x range.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	ASHCROFT
Output	4 to 20mA DC
Series	G2
Accuracy	±0.5%
IP Rating	IP67
NEMA Rating	4X
Overpressure	2x Range
Burst Pressure	5x Range
Housing Material	Nylon
Process Connection Type	SAE
Manufacturer Part Number	G17MEK42F21000#
Process Connection Gender	Male
Calibration Certificate Included	No NIST-Traceable Calibration Certificate Included
