Ashcroft 3G-OTH-175454 — Technical Specifications

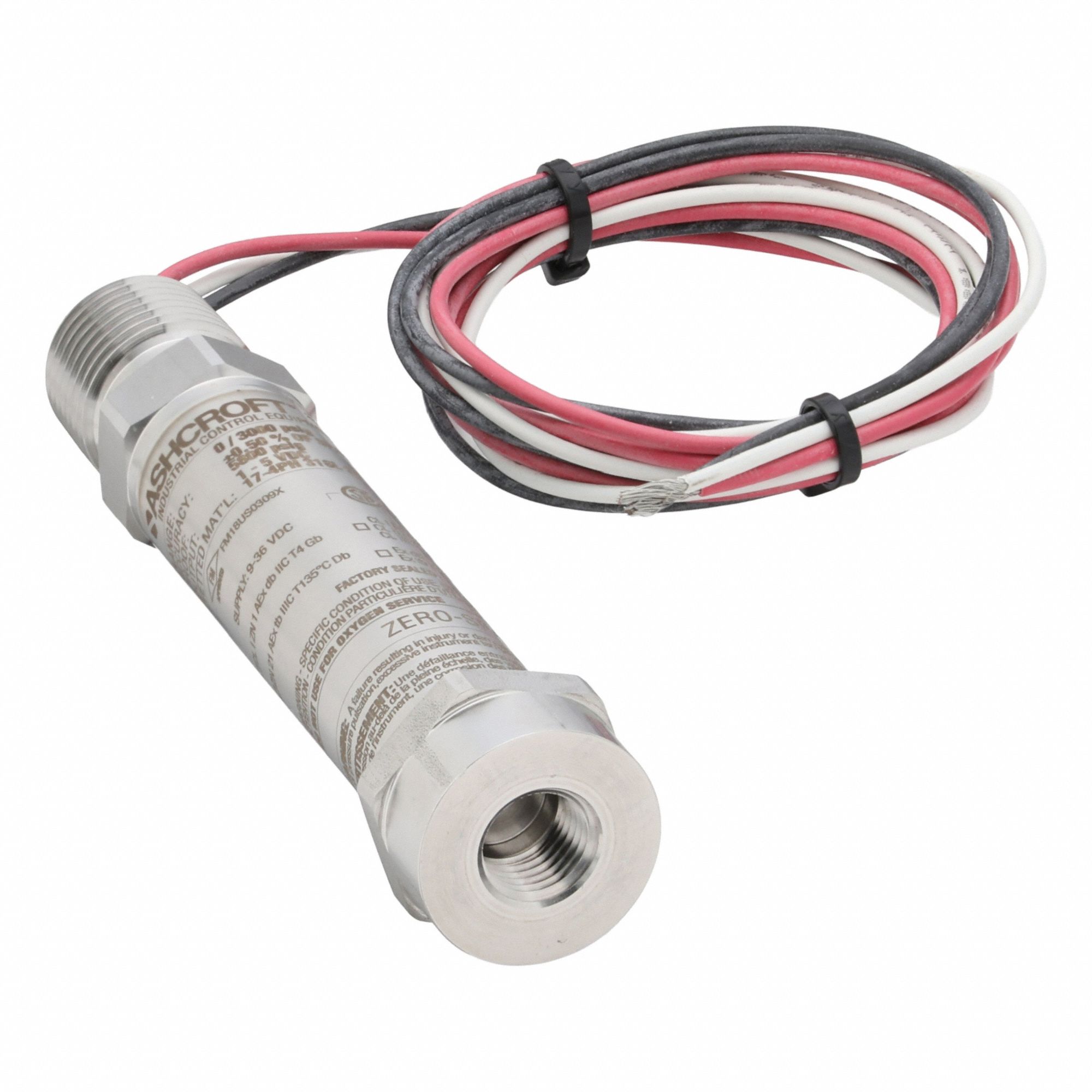

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NF0215CFX03F3000#) is an explosion-proof transmitter with a conduit connection and wire leads, rated for 3,000 psi gauge pressure. It features a stainless steel housing, IP66 and NEMA 4X ratings, a 1 to 5V DC output, ±0.50% accuracy, and a 1/2 in NPT conduit electrical connection with cable. The transmitter offers overpressure protection of 1.9x and burst pressure of 5x, and is vibration resistant.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.9x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0215CFX03F3000# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
