Ashcroft 3G-OTH-175422 — Technical Specifications

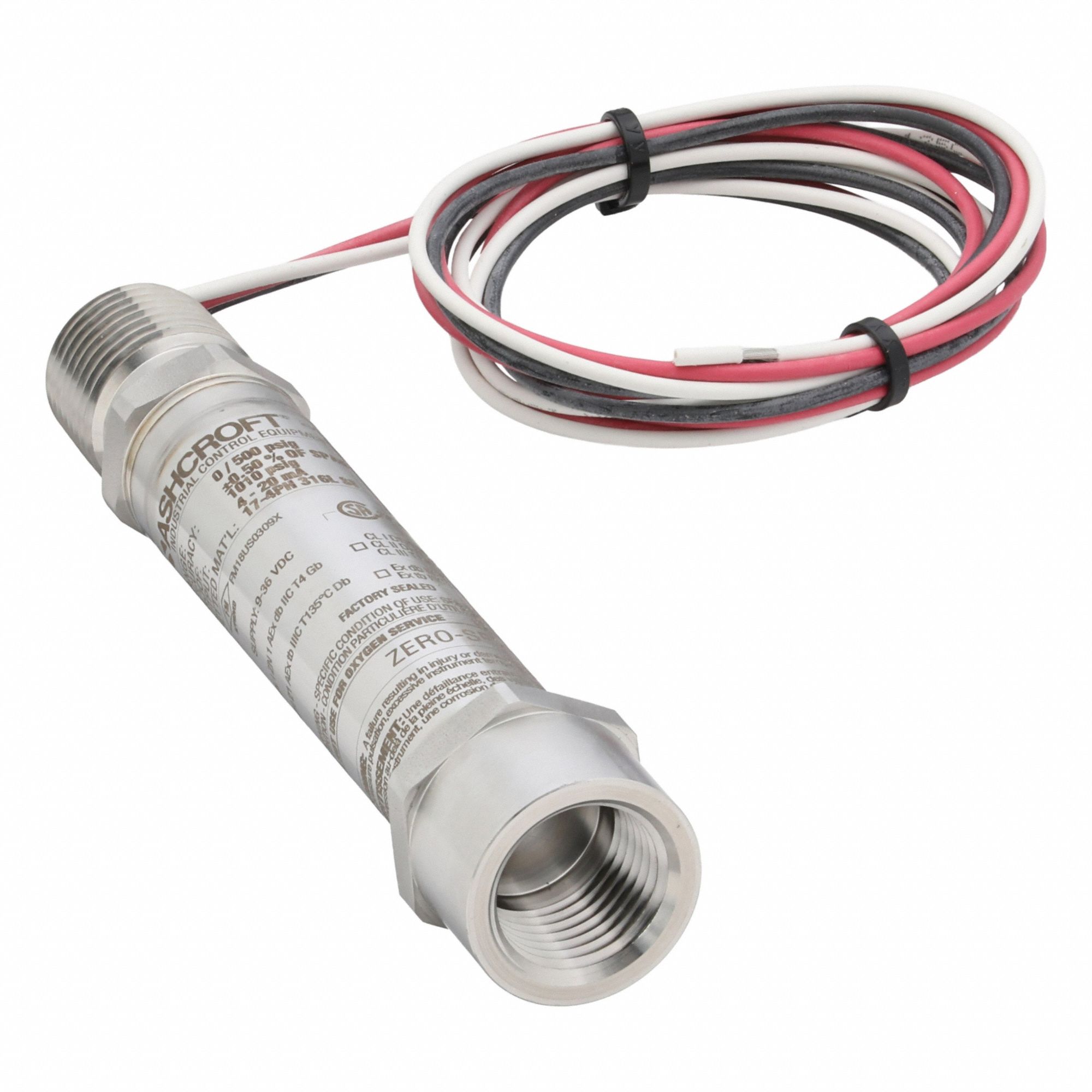

The ASHCROFT E2F Series Pressure Transmitter (SKU 851D71, MPN E2FA5NF0442CFX03F500#) is an explosion-proof transmitter with a 1/2 in NPT conduit connection and wire leads, rated for 500 psi gauge pressure. It features a 4 to 20mA output, ±0.50% accuracy, and a stainless steel housing with IP66 and NEMA 4X ratings. The unit is vibration resistant, with overpressure protection of 2x and burst pressure of 8x, and carries a safety rating of Class I, Div 1, Group A, B, C, D.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2x |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0442CFX03F500# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
