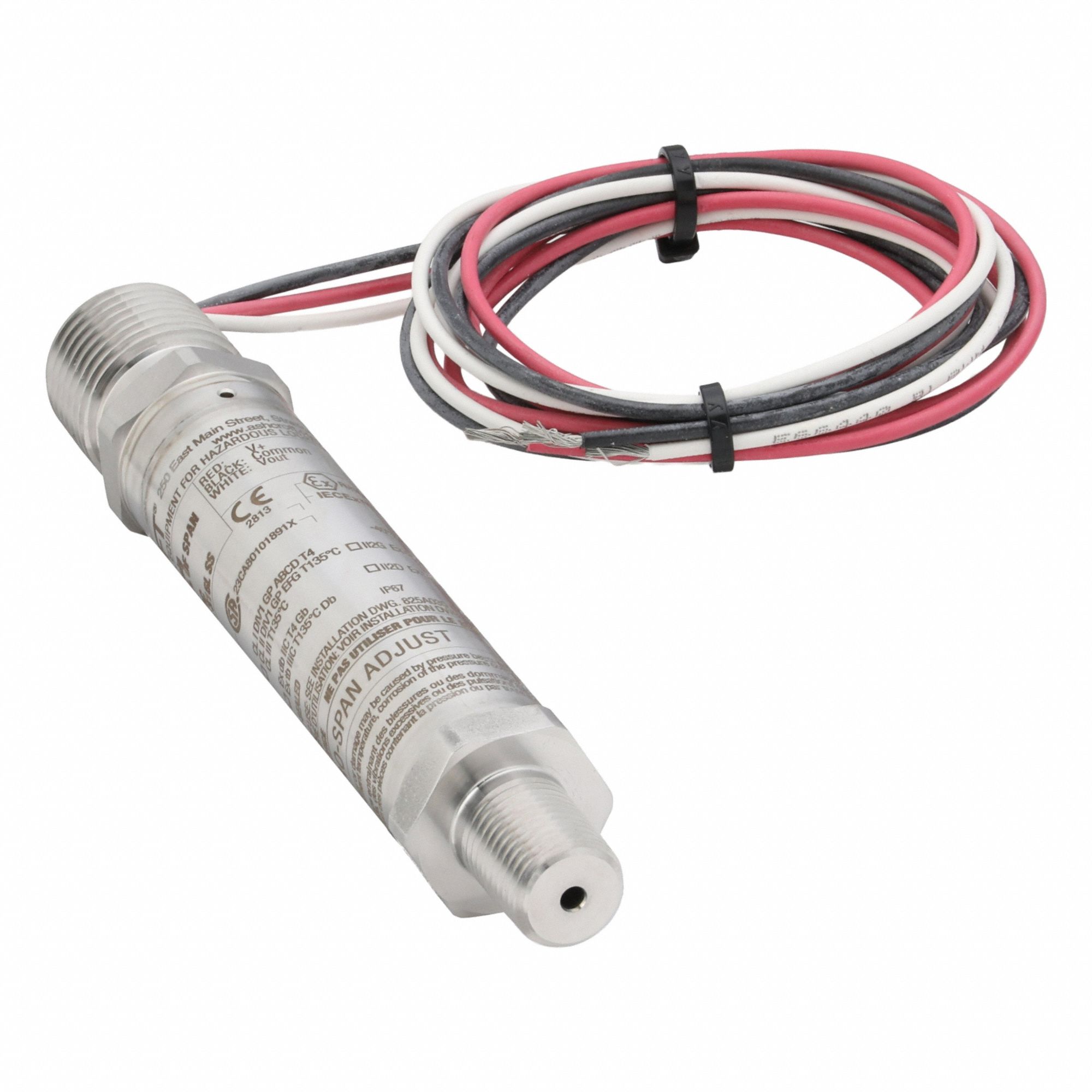

Ashcroft 3G-OTH-175353 — Technical Specifications
The ASHCROFT E2F Series Pressure Transmitter (30 psi) is an explosion-proof gauge pressure transmitter with a 1 to 5V DC output, housed in stainless steel with an IP66 and NEMA 4X rating. It features a 1/2 in NPT conduit electrical connection with cable and an NPT process connection, rated for Class II, Div 1, Group E, F, G hazardous locations with vibration resistance.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0215CFX03F30# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
