Ashcroft 3G-OTH-175499 — Technical Specifications

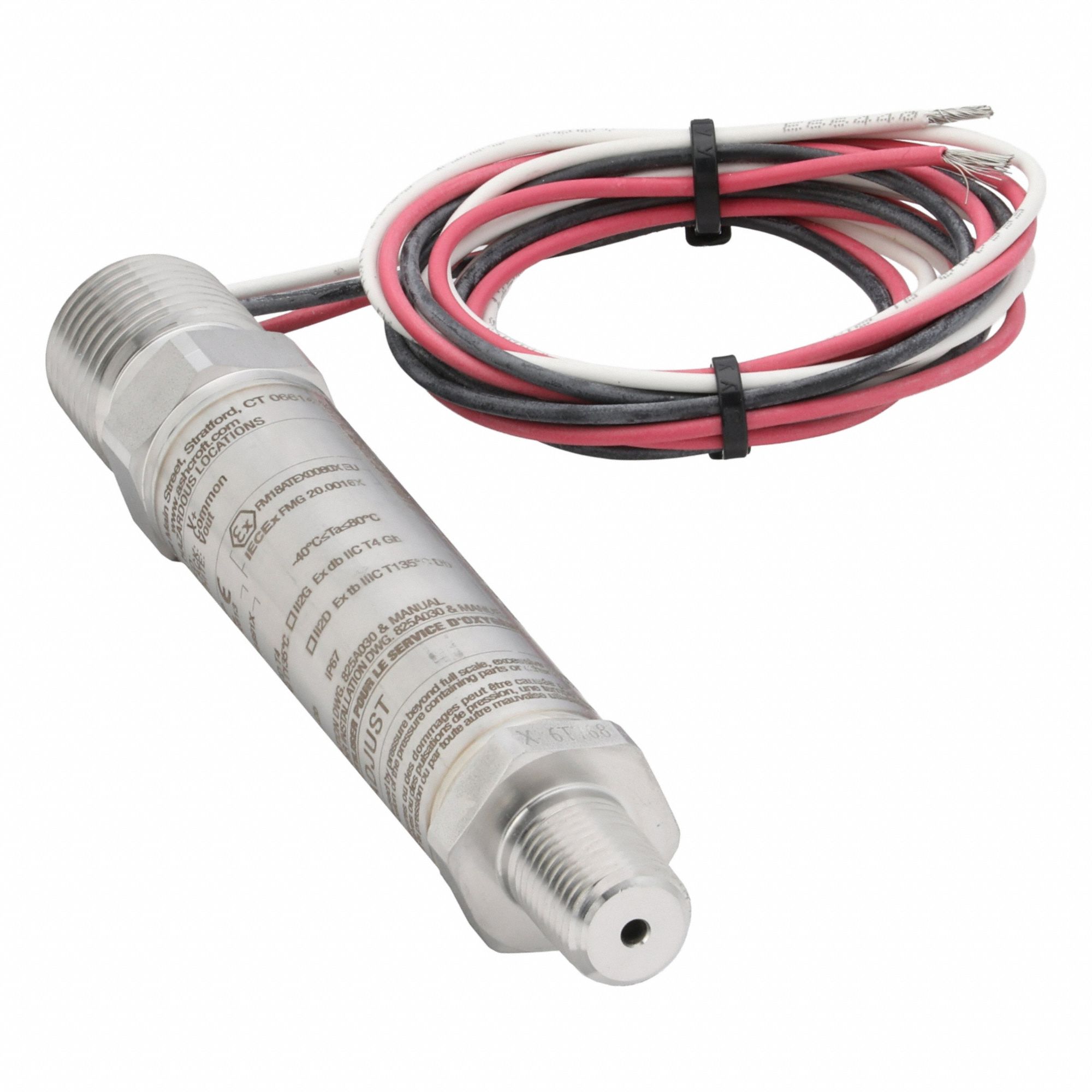

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NM0215CFX03F5000#) is an explosion-proof transmitter with a conduit connection and wire leads, rated for 5,000 psi gauge pressure. It features a 1 to 5V DC output, ±0.50% accuracy, and a stainless steel housing with IP66 and NEMA 4X ratings. The unit includes a 1/2 in NPT conduit with cable electrical connection and is shock resistant, with overpressure of 1.5x and burst pressure of 5x.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.5x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0215CFX03F5000# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
