Ashcroft 3G-OTH-175344 — Technical Specifications

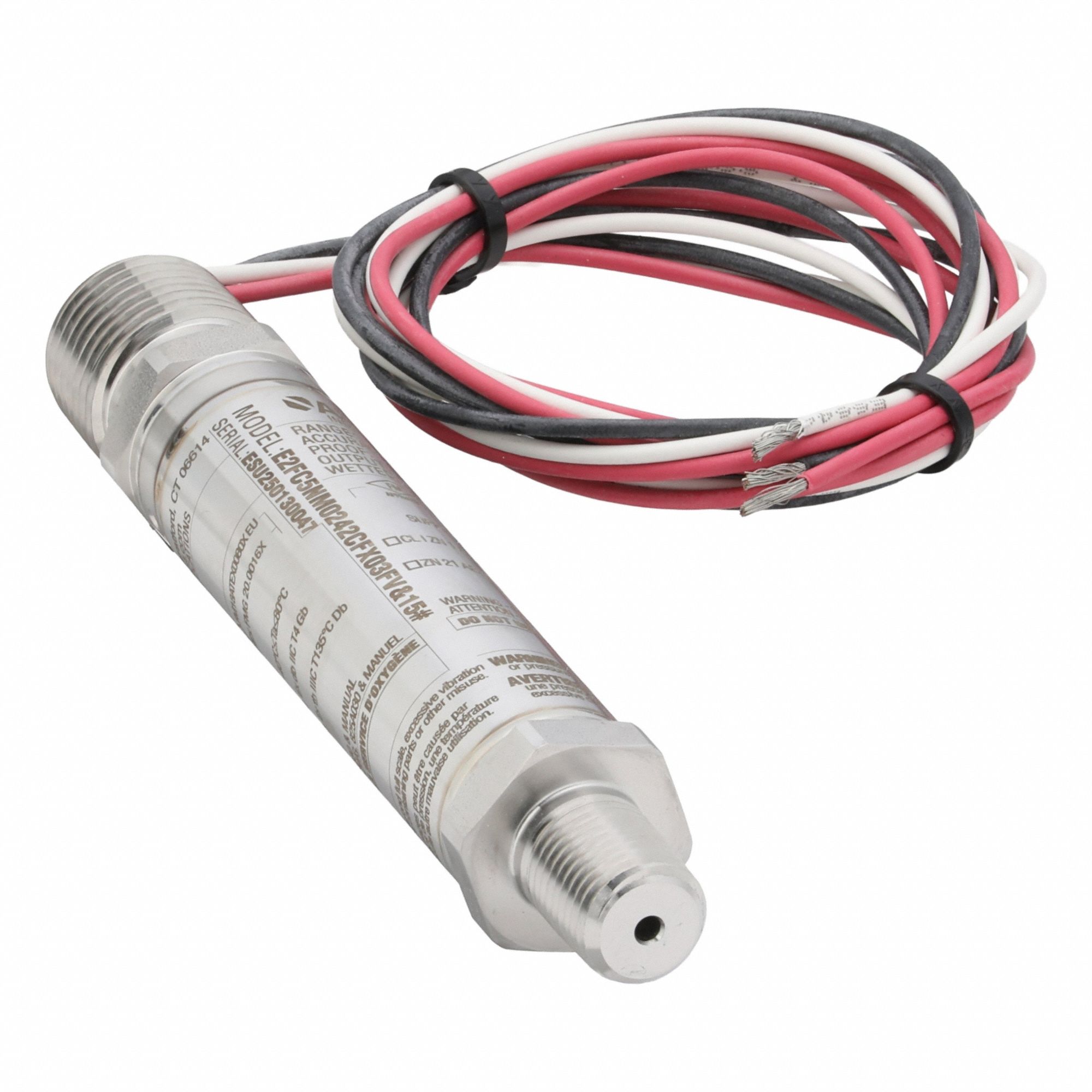

The ASHCROFT E2F Series Pressure Transmitter (15 psi) is an explosion-proof transmitter with a 1/2 in NPT conduit connection and wire leads. It offers a 4 to 20mA output, ±0.50% accuracy, and a compound pressure range of -15 psi to 15 psi. Housed in stainless steel with IP66 and NEMA 4X ratings, it features 3.1x overpressure and 5x burst pressure protection, and is shock resistant.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3.1x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 5x |
| Pressure Range | -15 psi to 15 psi |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NM0242CFX03FV&15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
