Baldor 3G-OTH-60269 — Technical Specifications

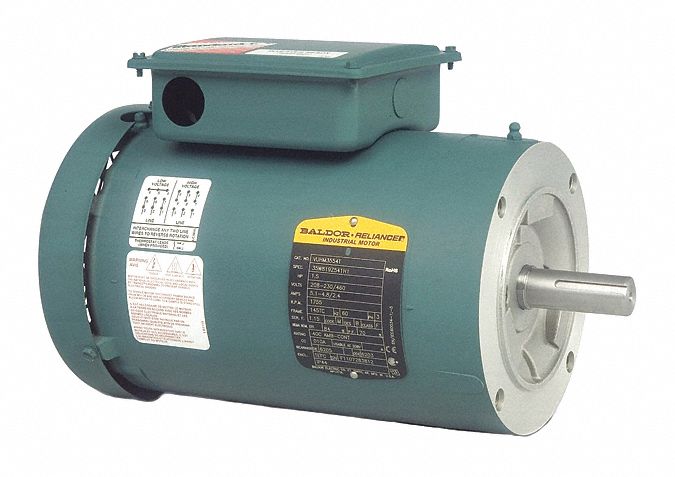

The BALDOR General Purpose Motor: C-Face Mount (SKU 59VY70) is a TEFC, 3-phase AC motor with a C-Face mount. It operates at 1,765 RPM at 60 Hz, with a full load current of 1.1 A and a nameplate voltage of 230/460V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 1/2 hp |
| Brand | BALDOR |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,765 RPM |
| Manufacturer Part Number | VUHM3538 |
| Full Load Current @ 60 Hz | 1.1 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
