Barnes 3G-OTH-83876 — Technical Specifications

Name: Barnes 3G-OTH-83876 BARNES Sewage Ejector Pump: Cast Iron, Single Phase, 2 hp, 240V AC, 370 gpm Flow Rate @ 10' of Head (MPN 3SE2024DS). Key specifications — Impeller Material: Cast Iron; Rated Voltage: 240V AC; Brand: BARNES; Discharge Orientation: Vertical; Switch: Not Included.
Brand: Barnes

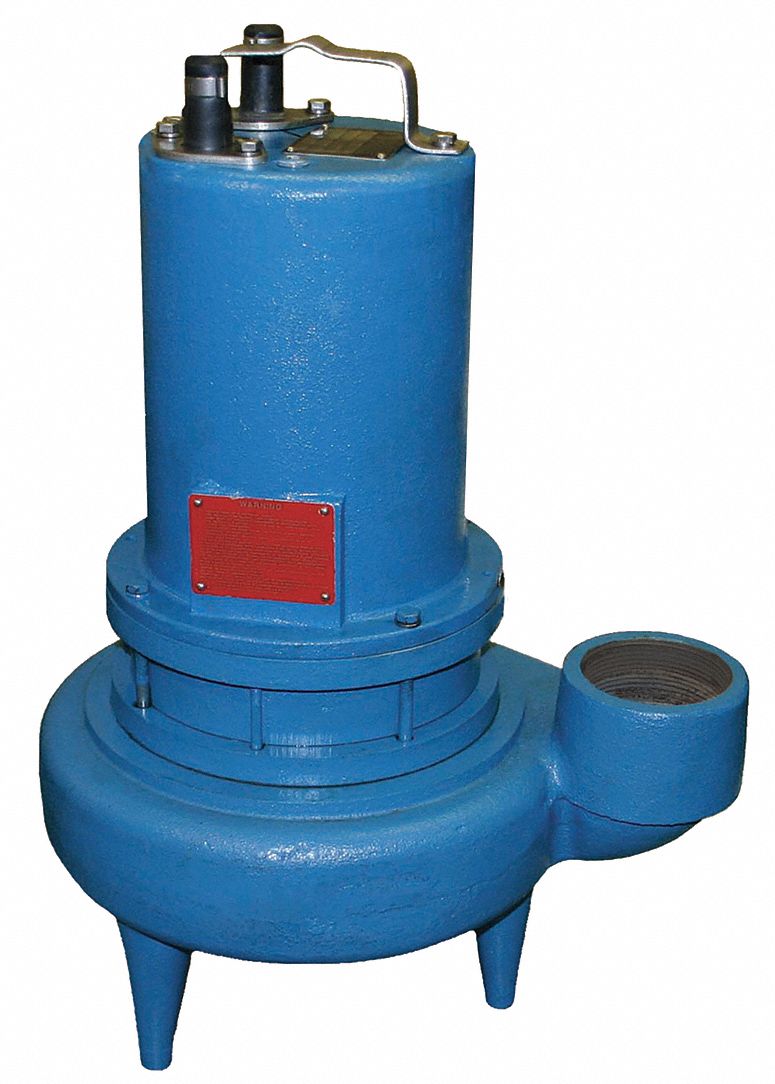

The BARNES 3SE2024DS is a cast-iron, non-clog sewage ejector pump designed for vertical discharge applications. This single-phase unit operates at 2 hp and 240V AC, delivering a flow rate of 370 gpm at 10 feet of head. The pump features a cast-iron impeller and is supplied without a switch.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	Single Phase, 2 hp, 370 gpm Flow Rate @ 10' of Head
Brand	BARNES
Switch	Not Included
Rated Voltage	240V AC
Impeller Material	Cast Iron
Discharge Orientation	Vertical
Manufacturer Part Number	3SE2024DS
