Belimo 3G-OTH-67305 — Technical Specifications

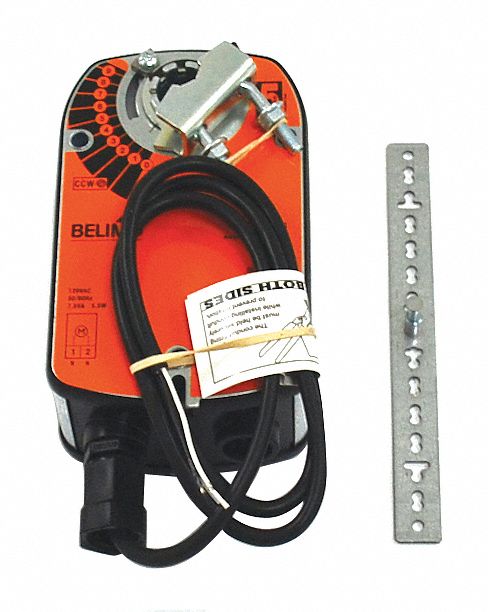

The BELIMO LF120 is a fail-safe spring-return damper actuator with on/off control, operating at 120V AC with a 5.5W power rating. It provides a 95° stroke with CW/CCW shaft rotation and is hardwired, rated NEMA 2 / IP54. This actuator is compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | On/Off, Spring Return, 35 in-lb, Hardwired, NEMA 2 / IP54 |
| Brand | BELIMO |
| Power Rating | 5.5W |
| Input Voltage | 120V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | LF120 |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
