Belimo 3G-OTH-67320 — Technical Specifications

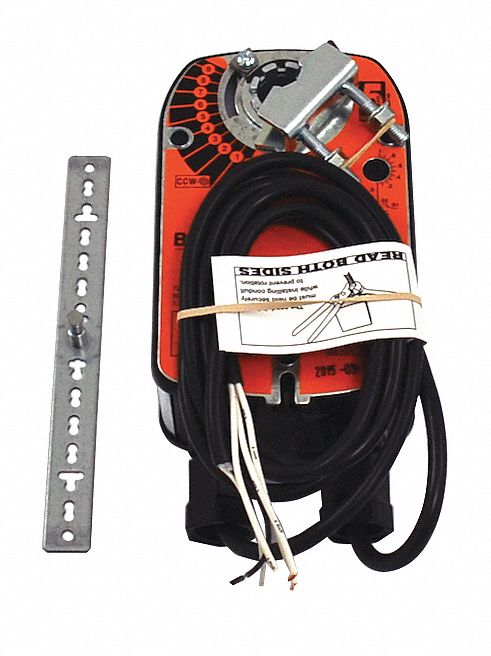

The BELIMO LF120-S is a fail-safe spring-return damper actuator with on/off control, delivering 35 in-lb of torque. It operates on 120V AC with a 5.5W power rating, features a 95° stroke with CW/CCW shaft rotation, and includes an auxiliary switch. This hardwired actuator is NEMA 2 / IP54 rated and compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | On/Off, Spring Return, 35 in-lb, Hardwired, NEMA 2 / IP54 |
| Brand | BELIMO |
| Power Rating | 5.5W |
| Input Voltage | 120V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | LF120-S |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
