Belimo 3G-OTH-67386 — Technical Specifications

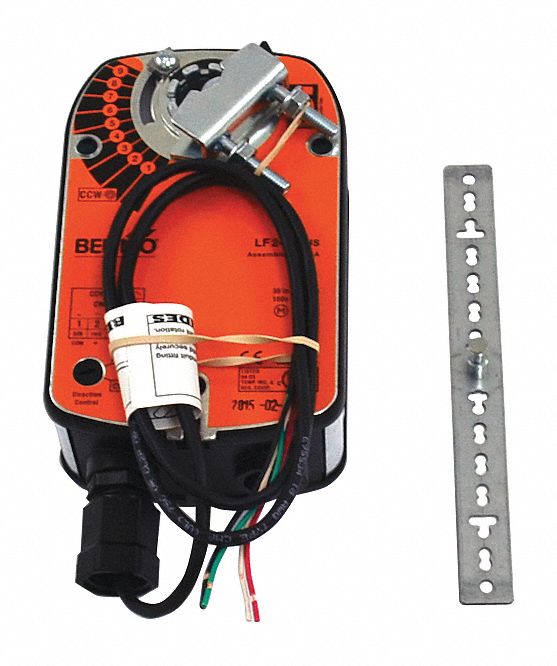

The BELIMO LF24-3 is a fail-safe spring-return damper actuator with a 2.5W power rating and 24V AC/DC input voltage. It features a 95° stroke degree with CW/CCW shaft rotation and a hardwired electrical connection. This floating point/on/off actuator is compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Floating Point/On/Off, Spring Return, 35 in-lb, Hardwired |
| AC/DC | 24V |
| Brand | BELIMO |
| Power Rating | 2.5W |
| Input Voltage | 24V AC/DC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | LF24-3 |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
